Electrical Development of the Ico Scanner

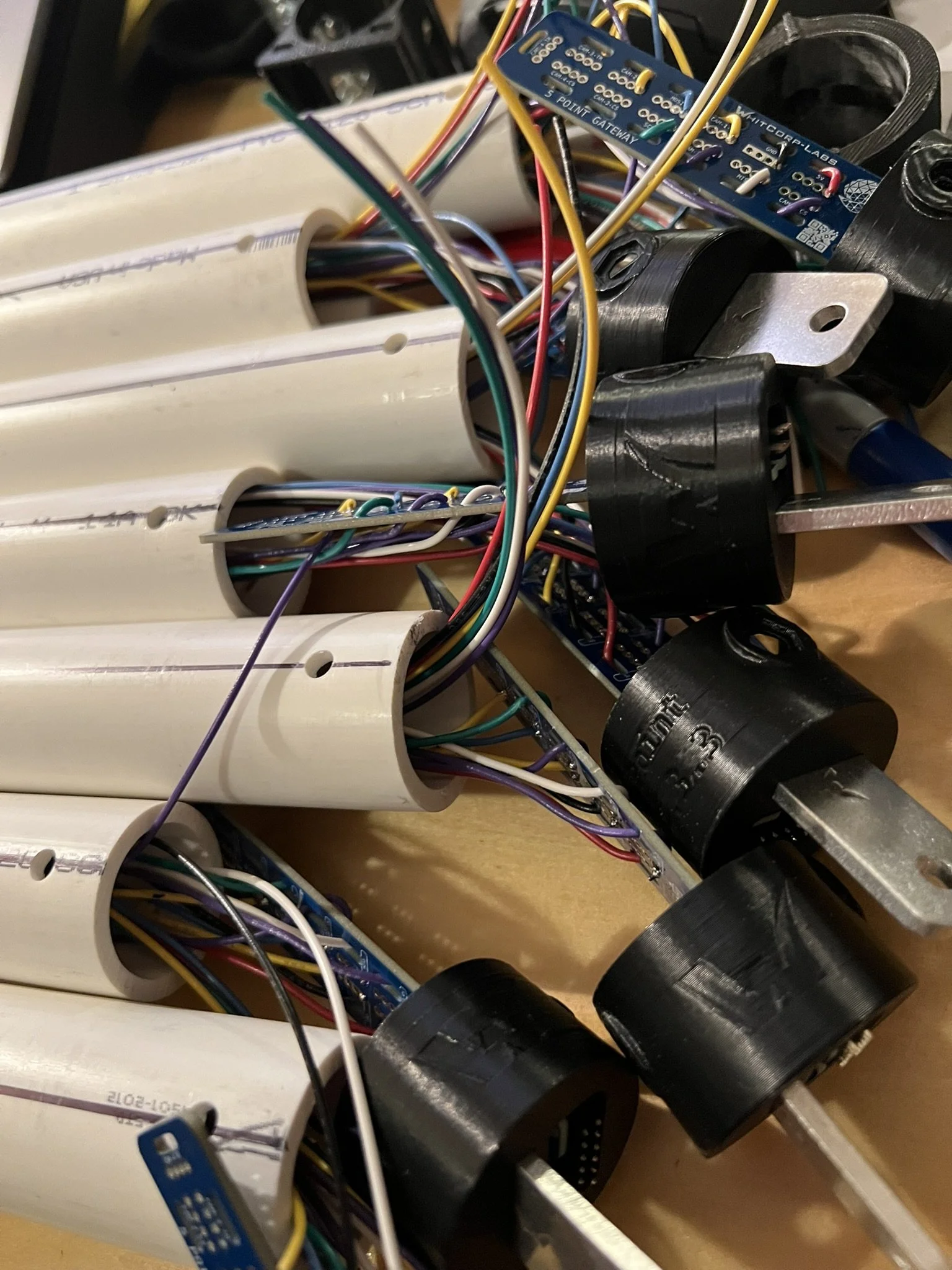

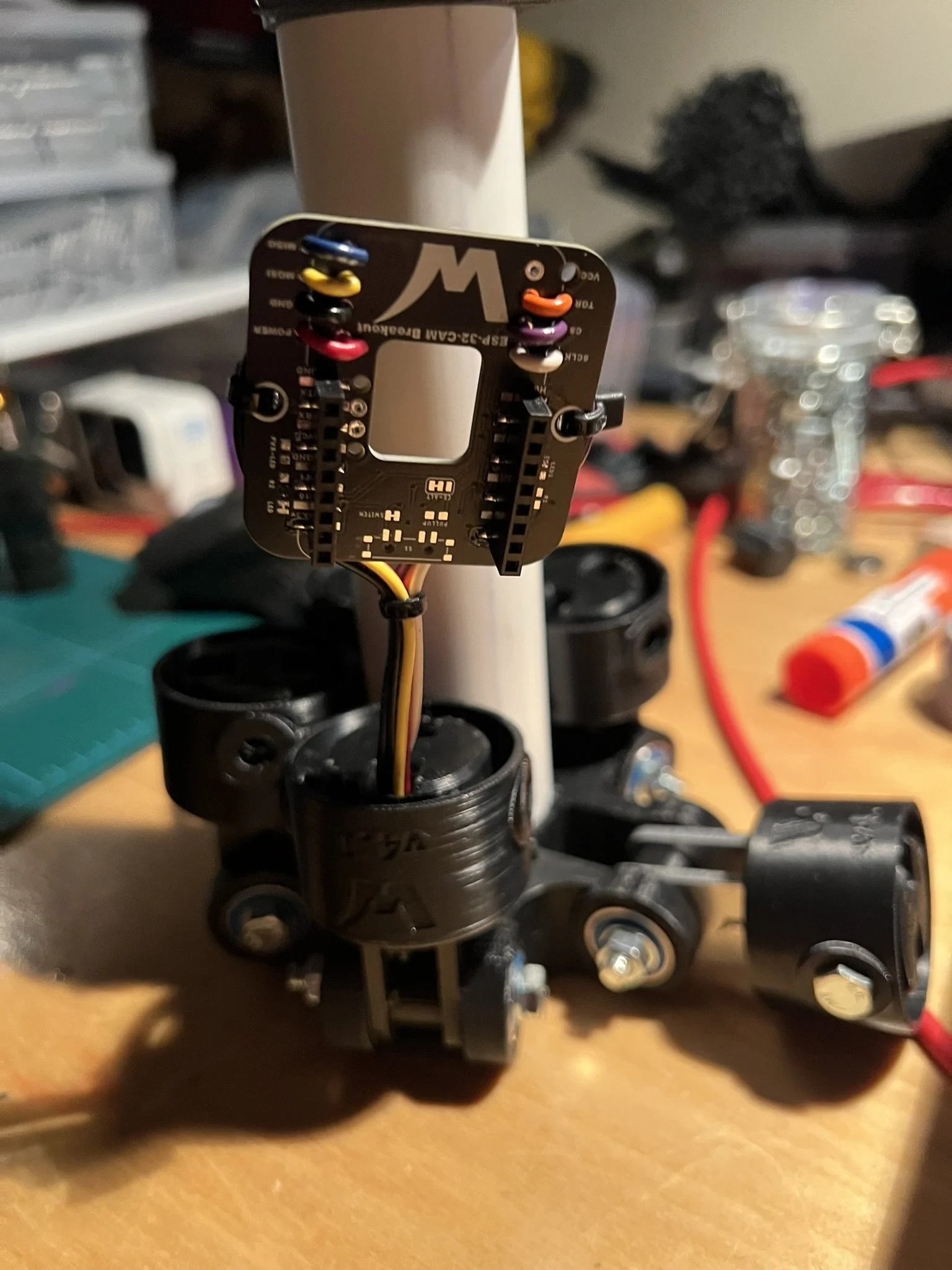

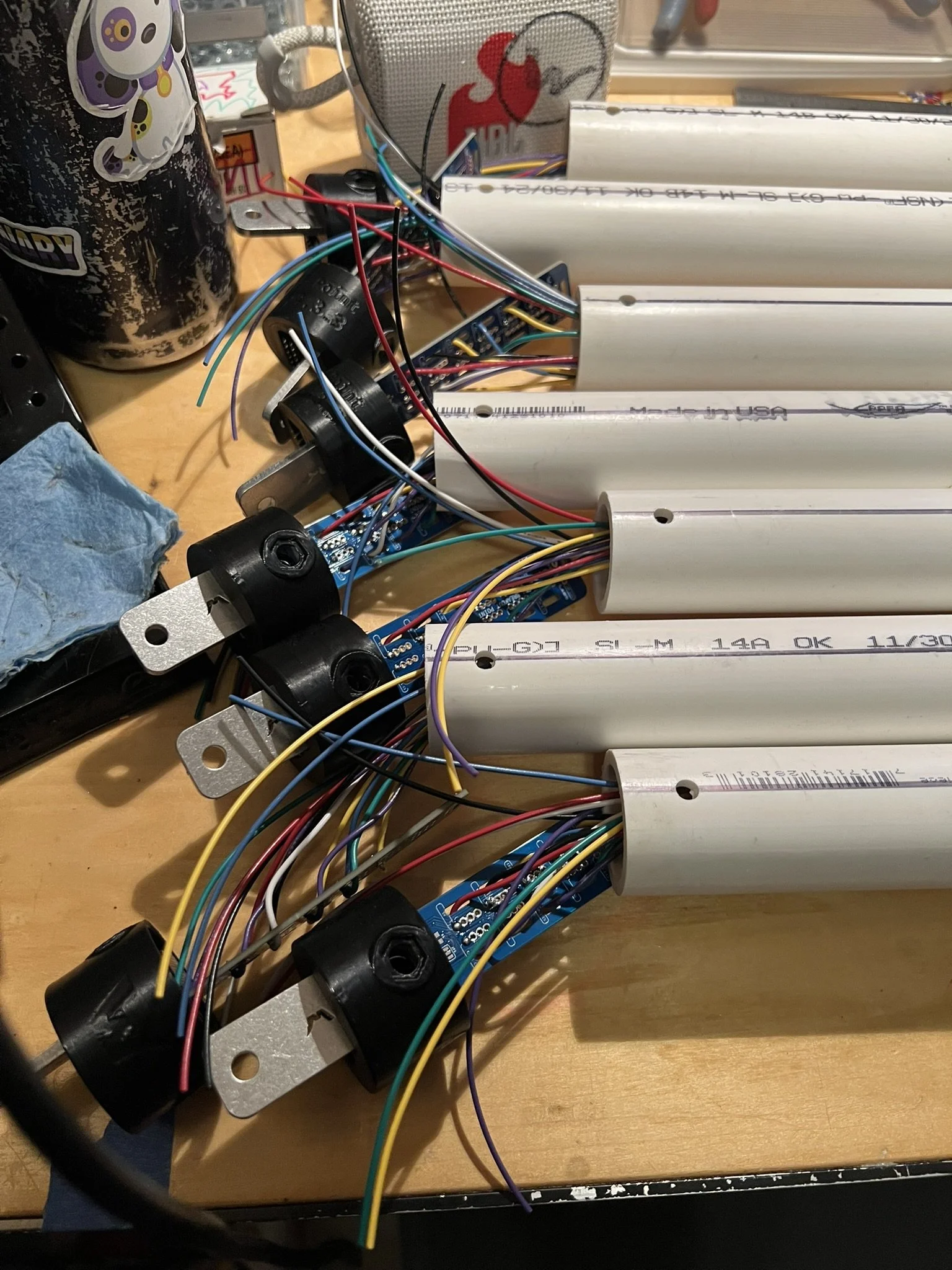

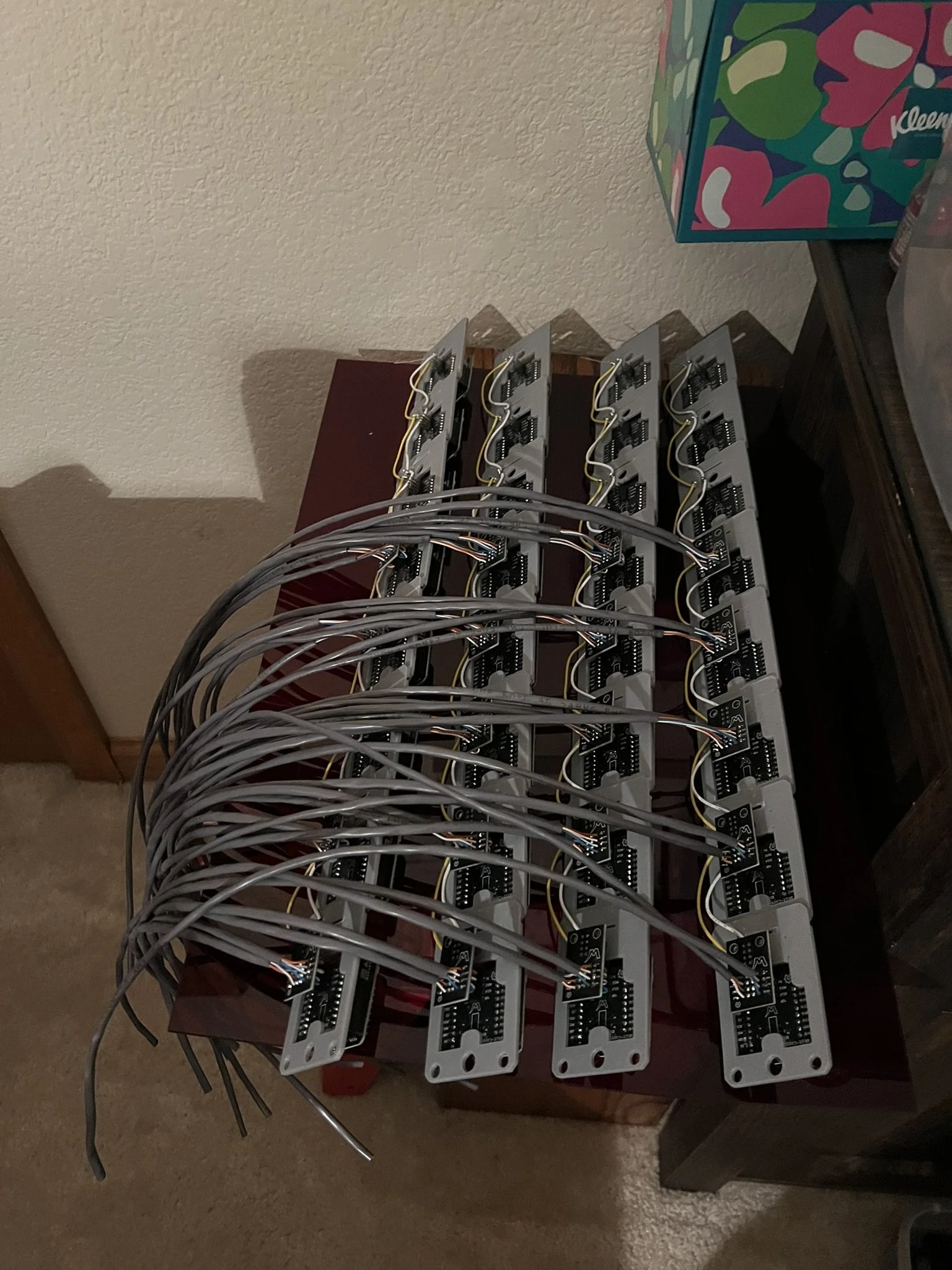

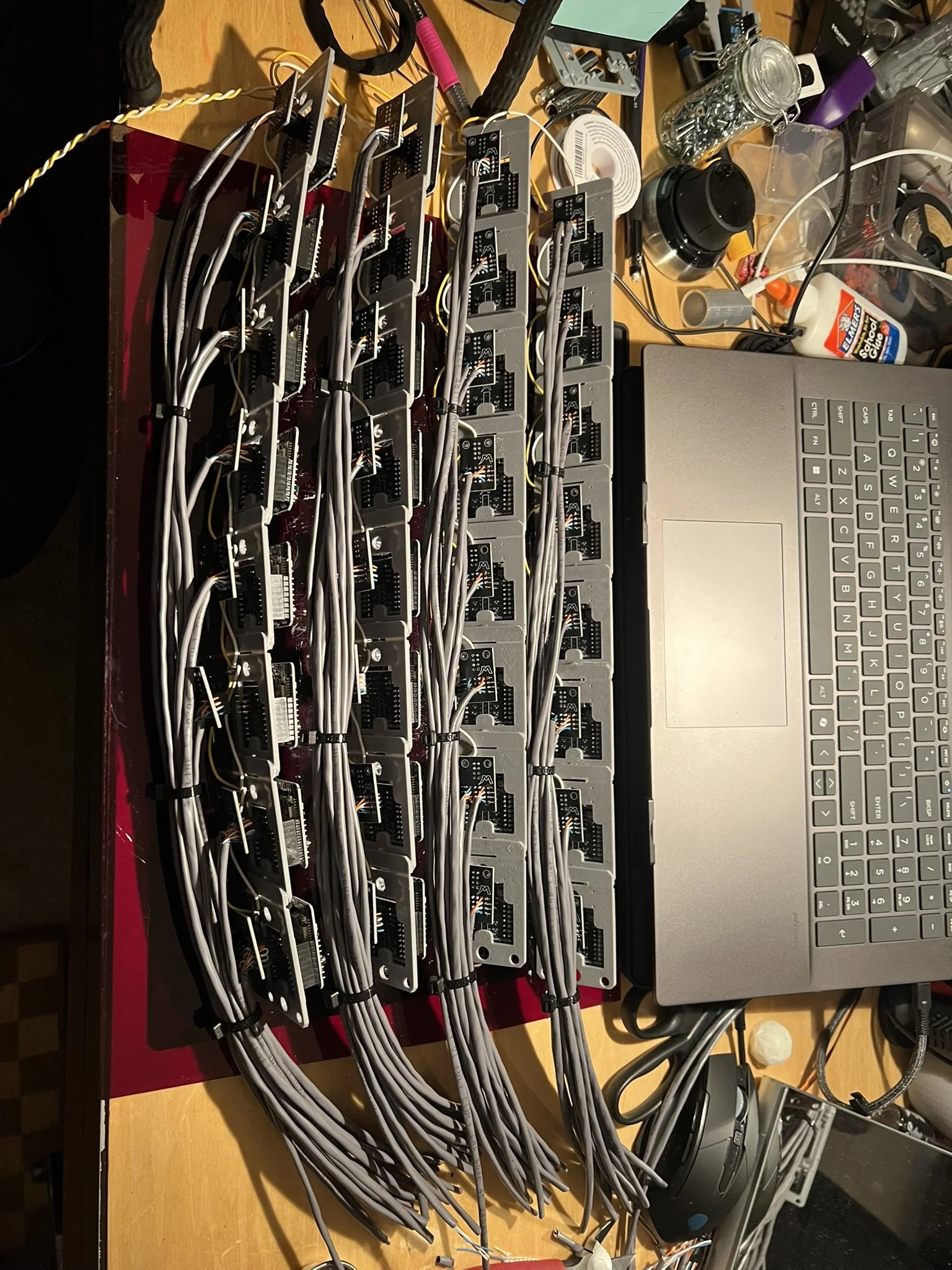

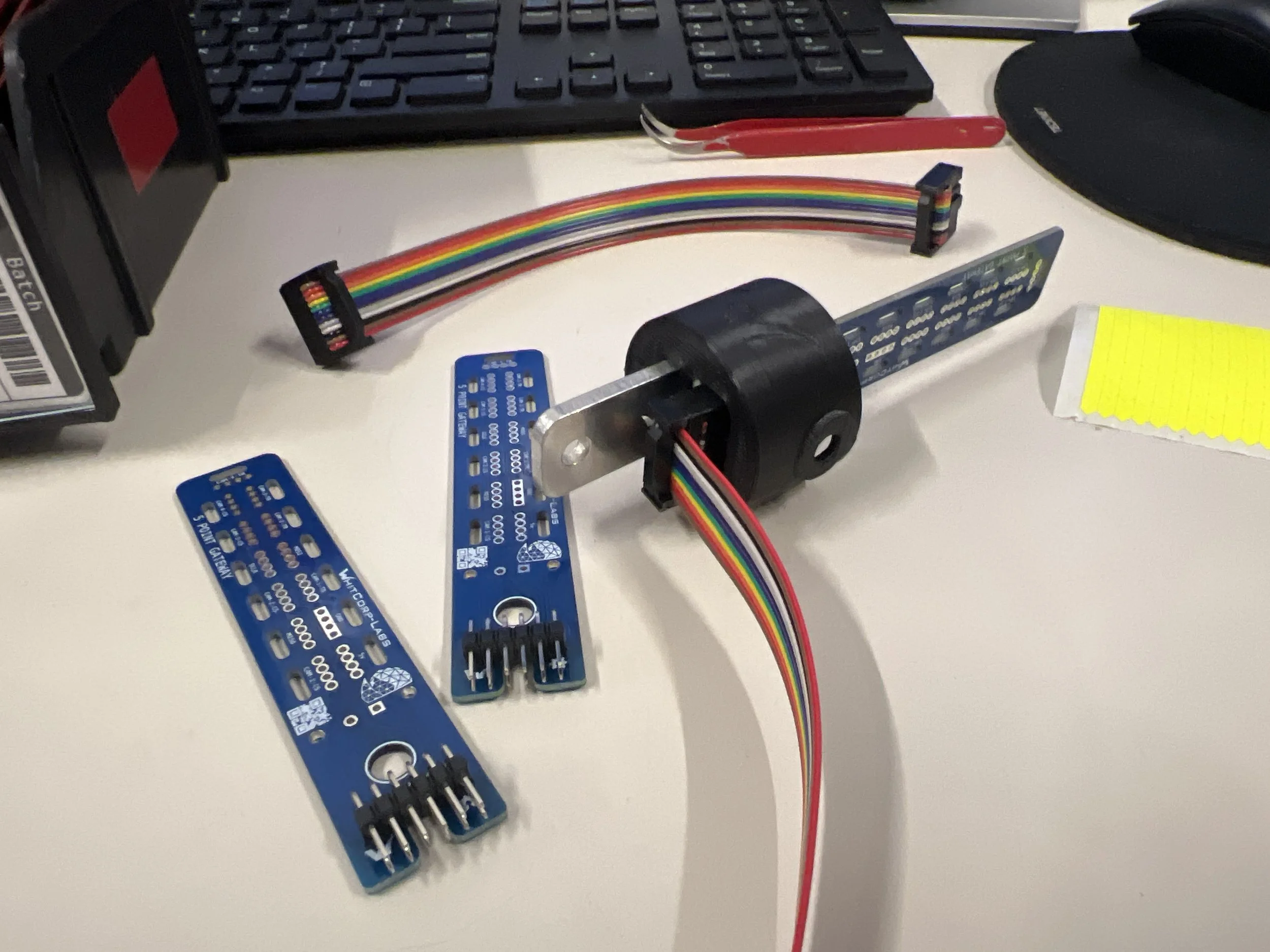

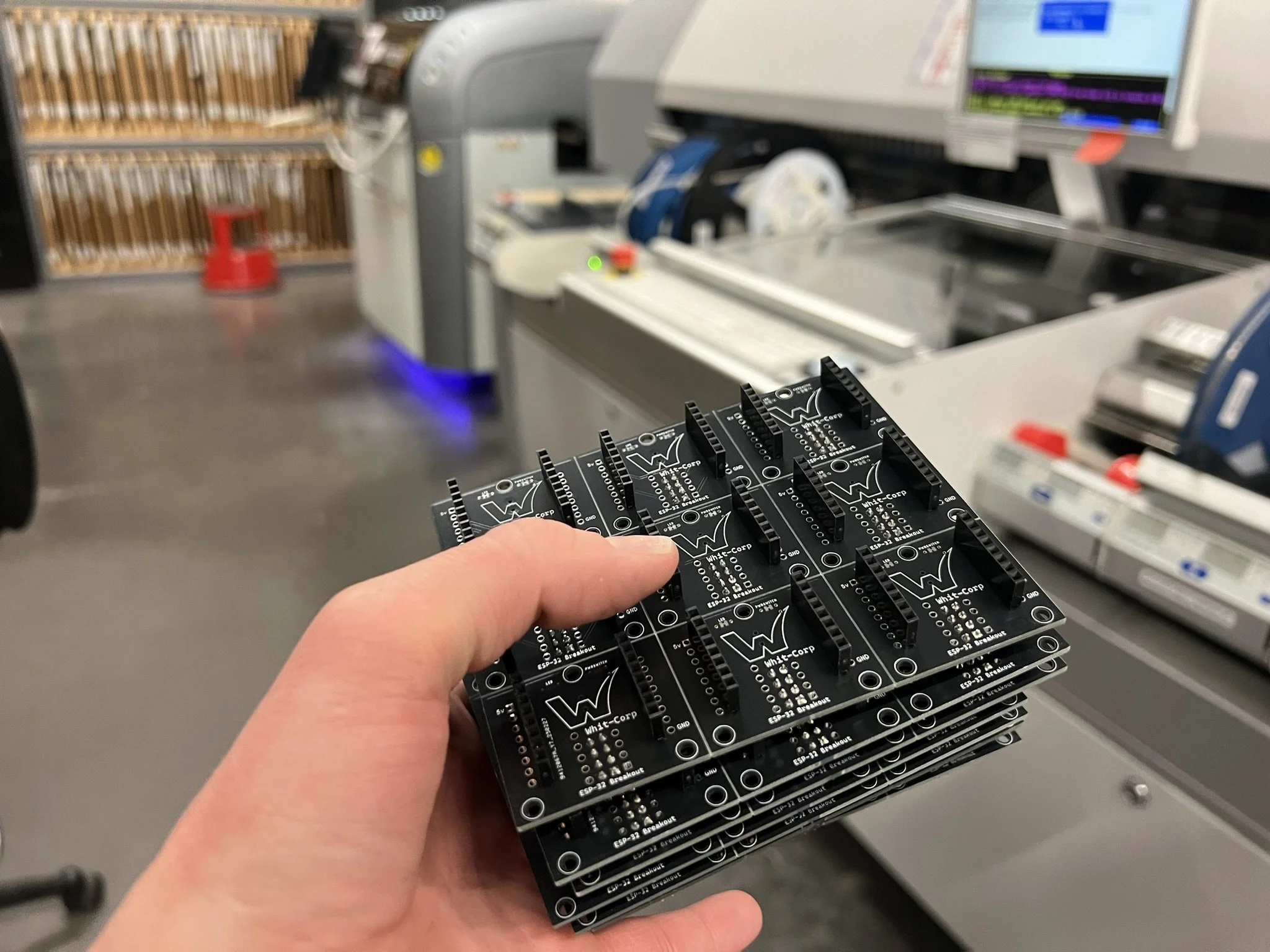

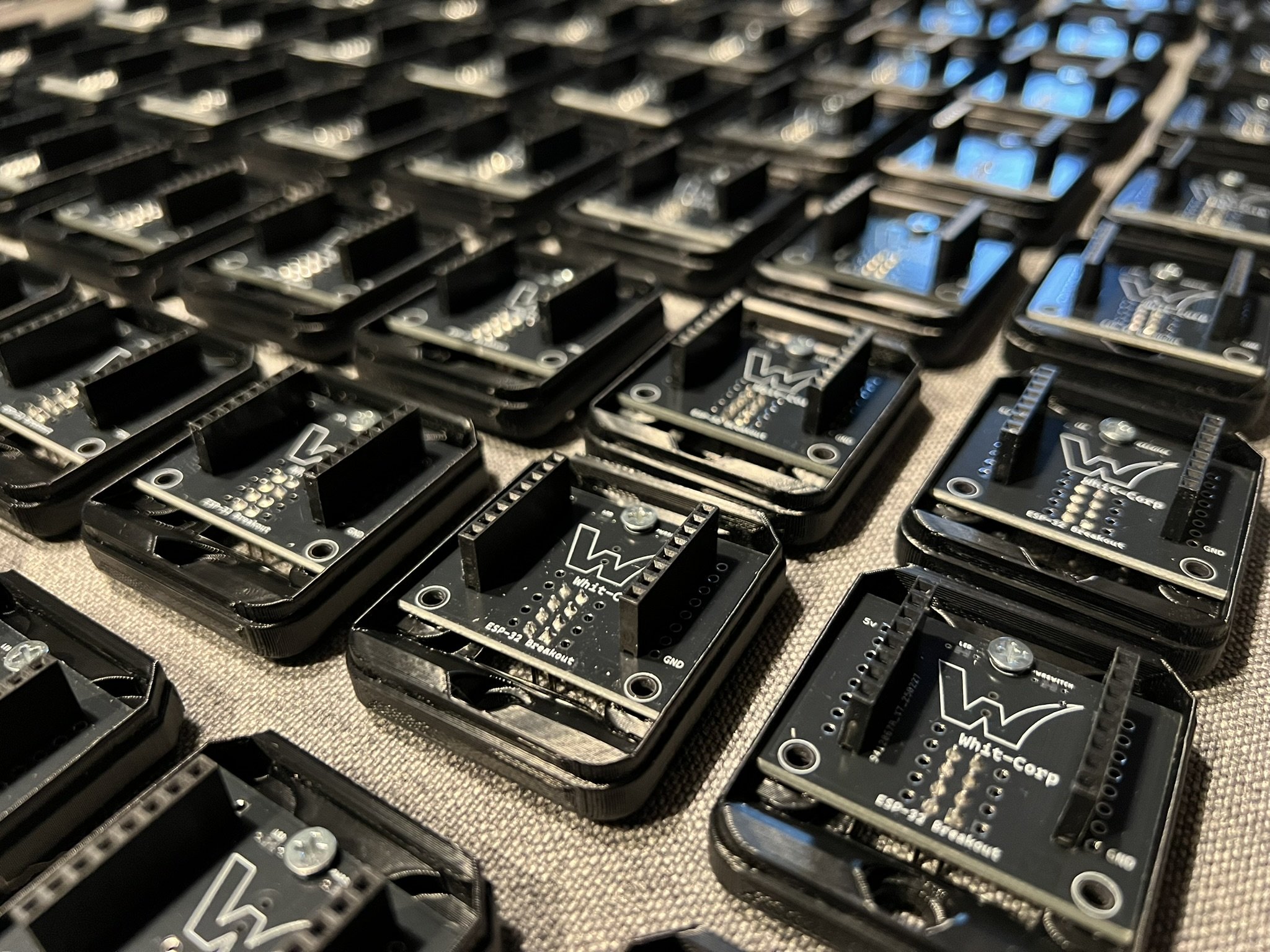

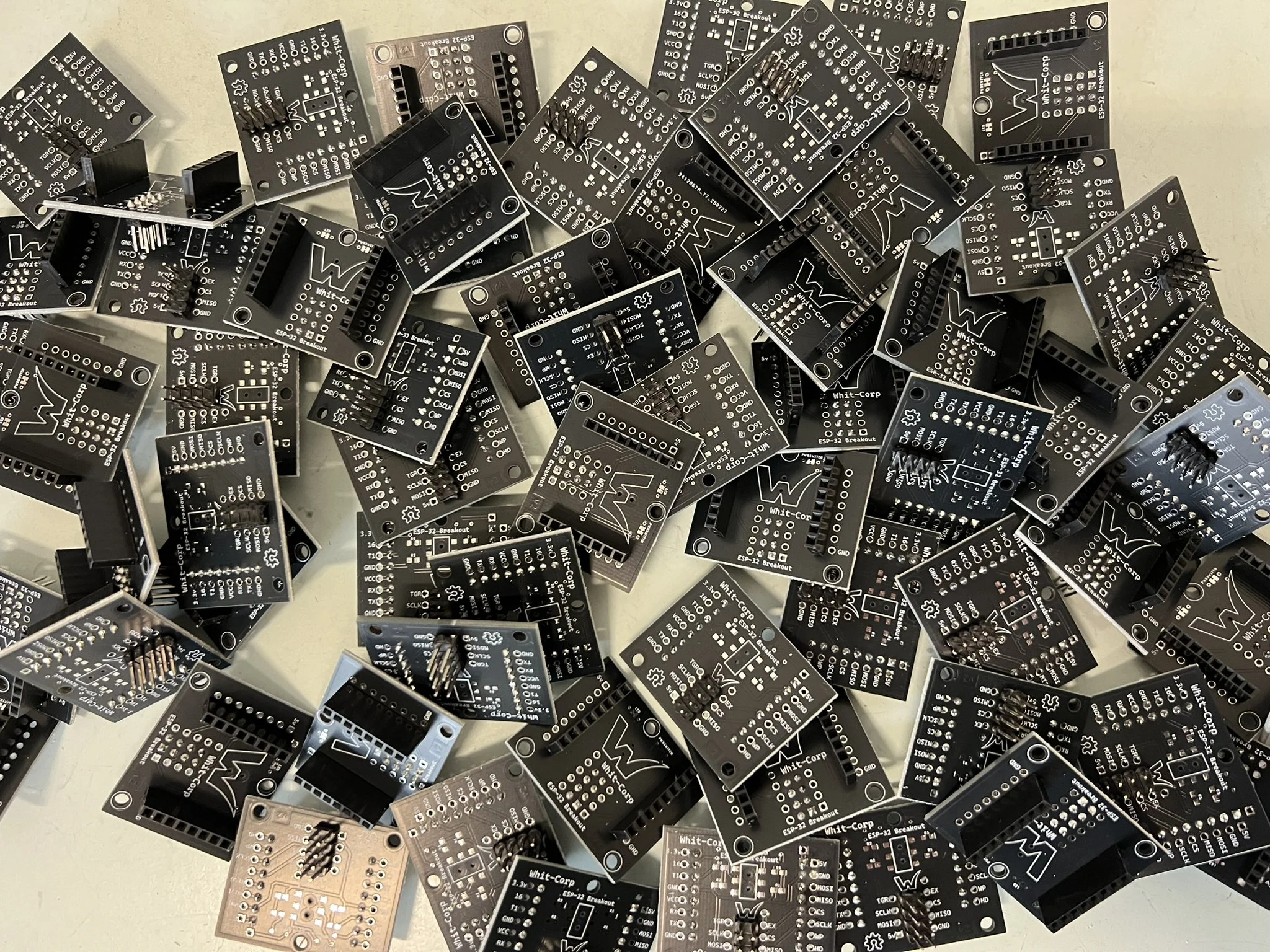

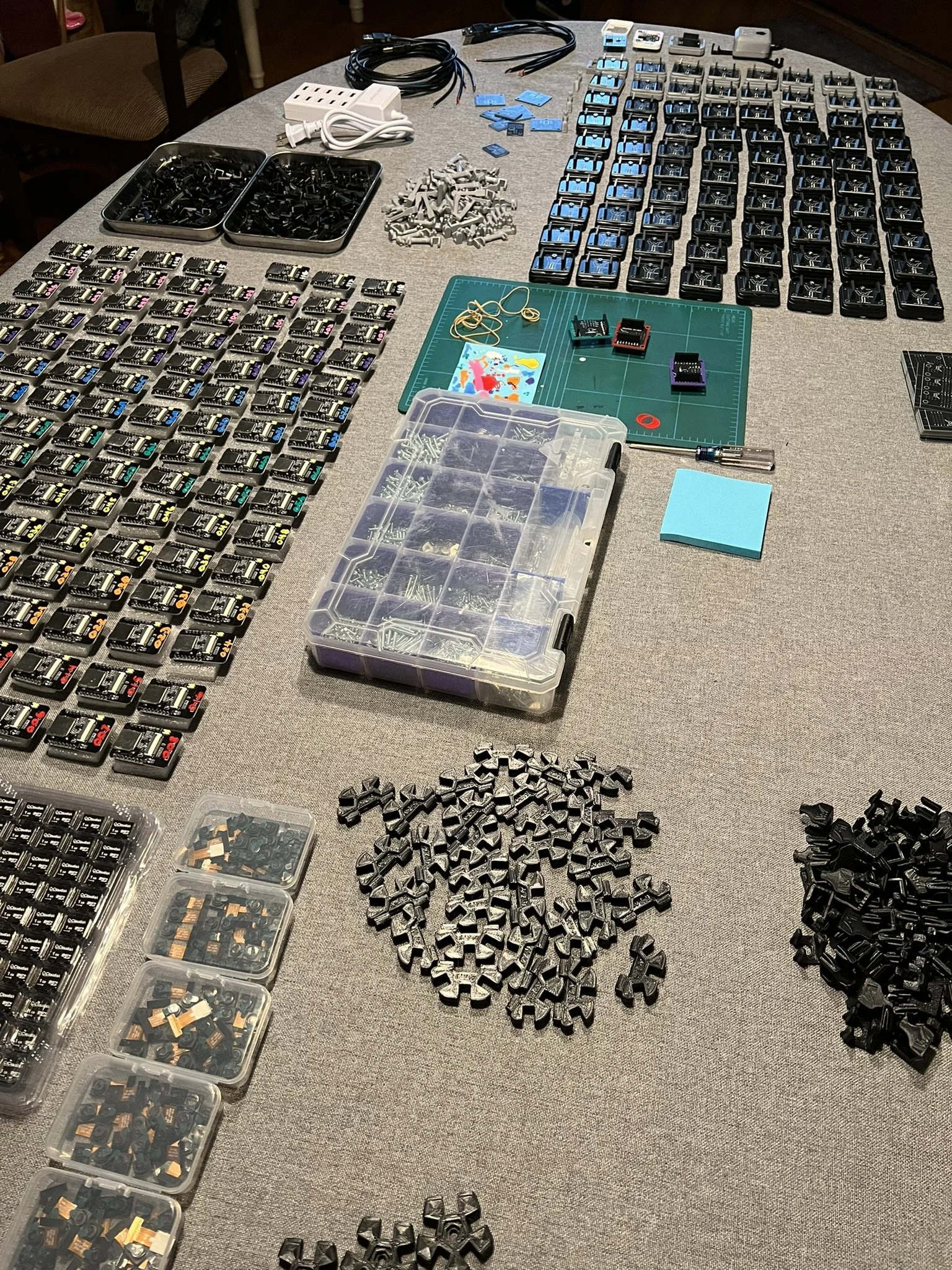

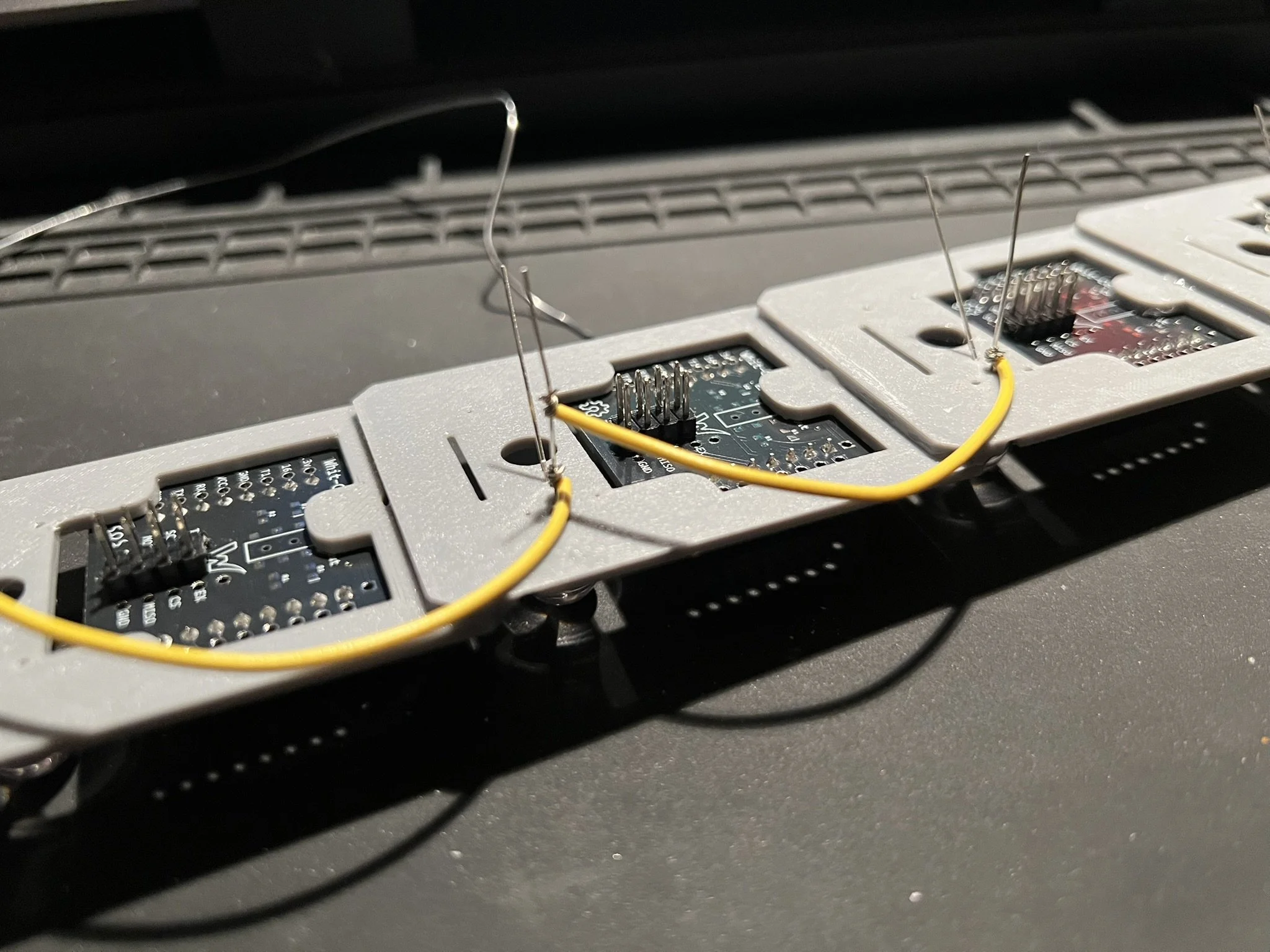

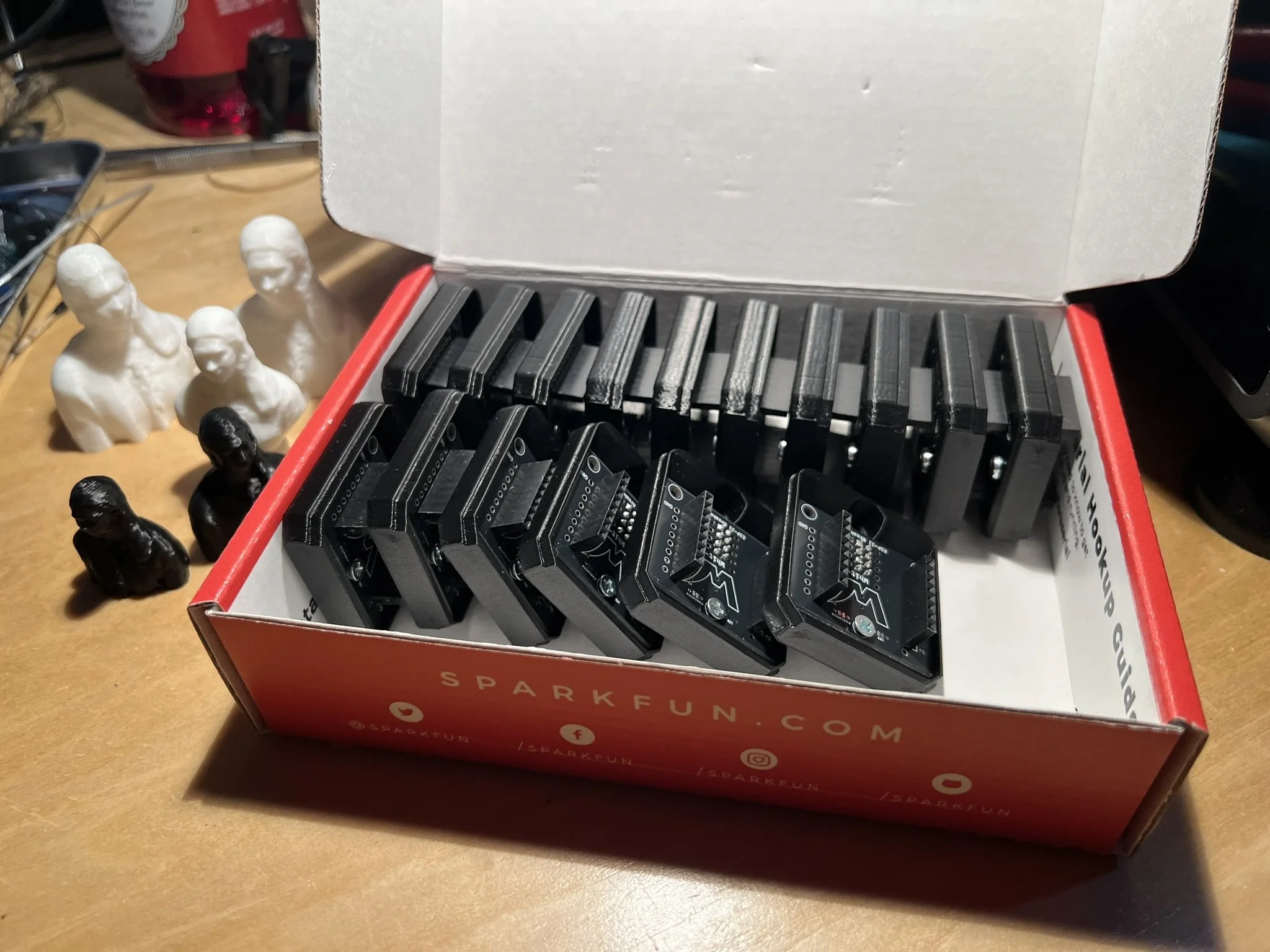

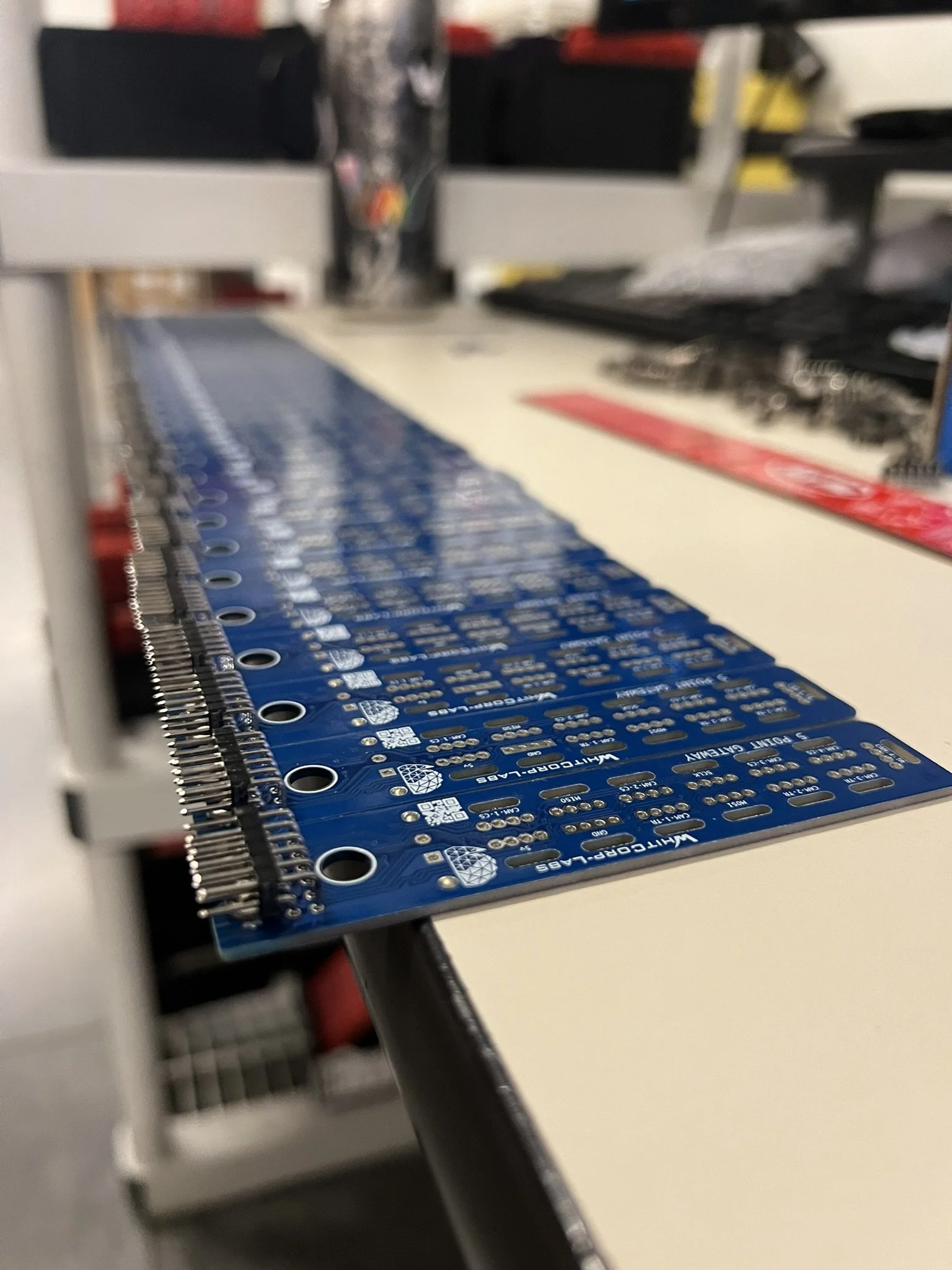

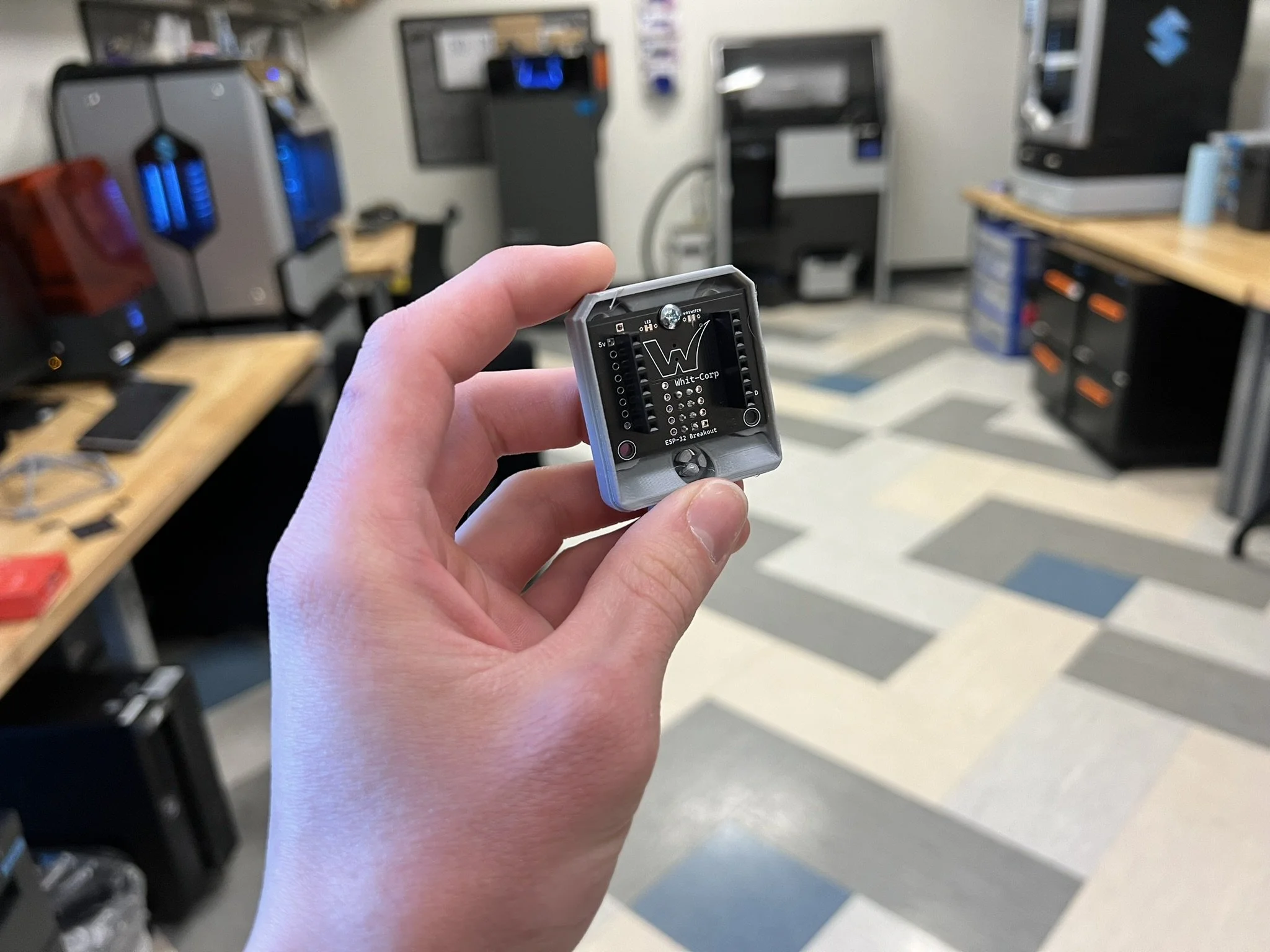

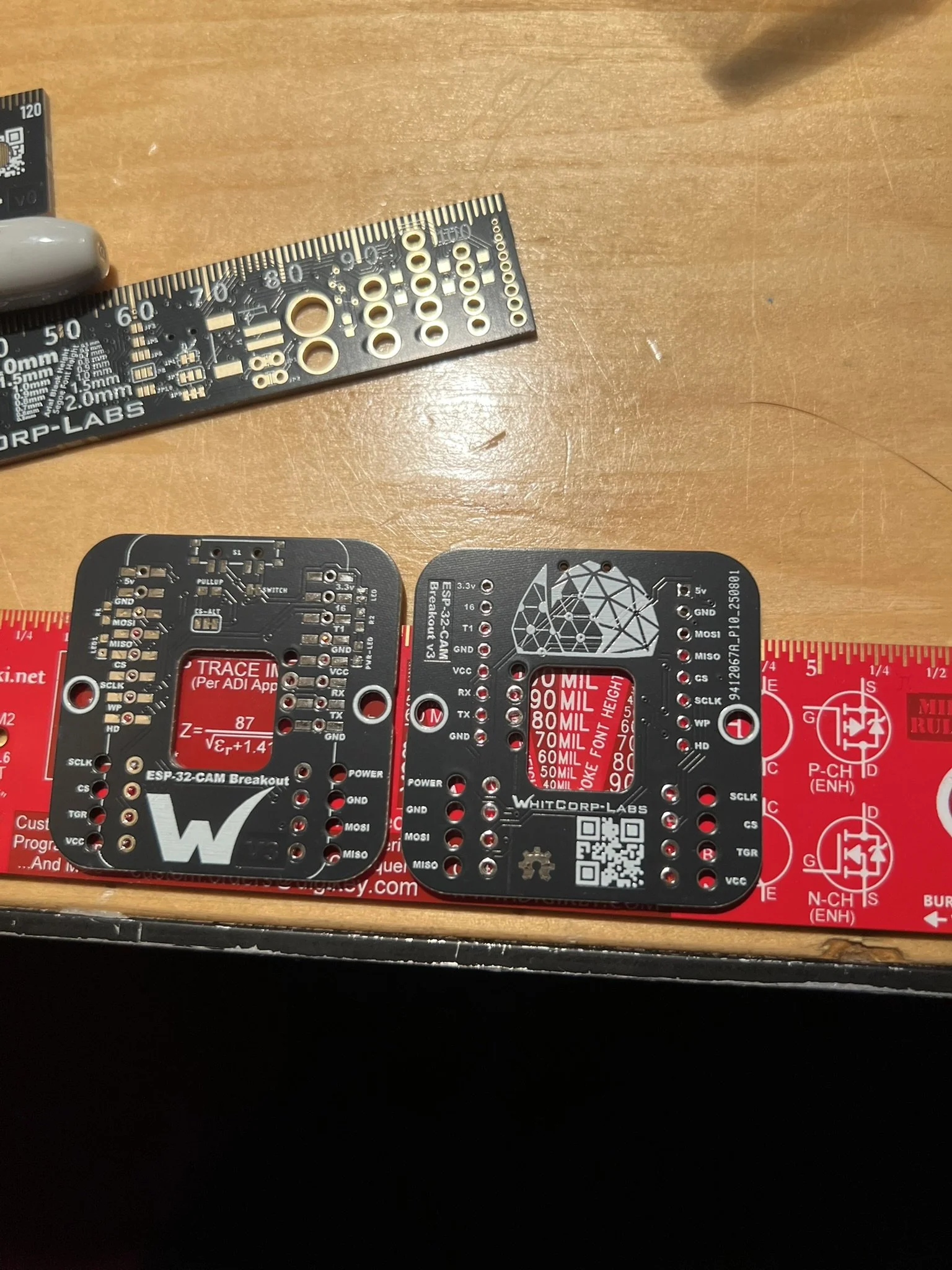

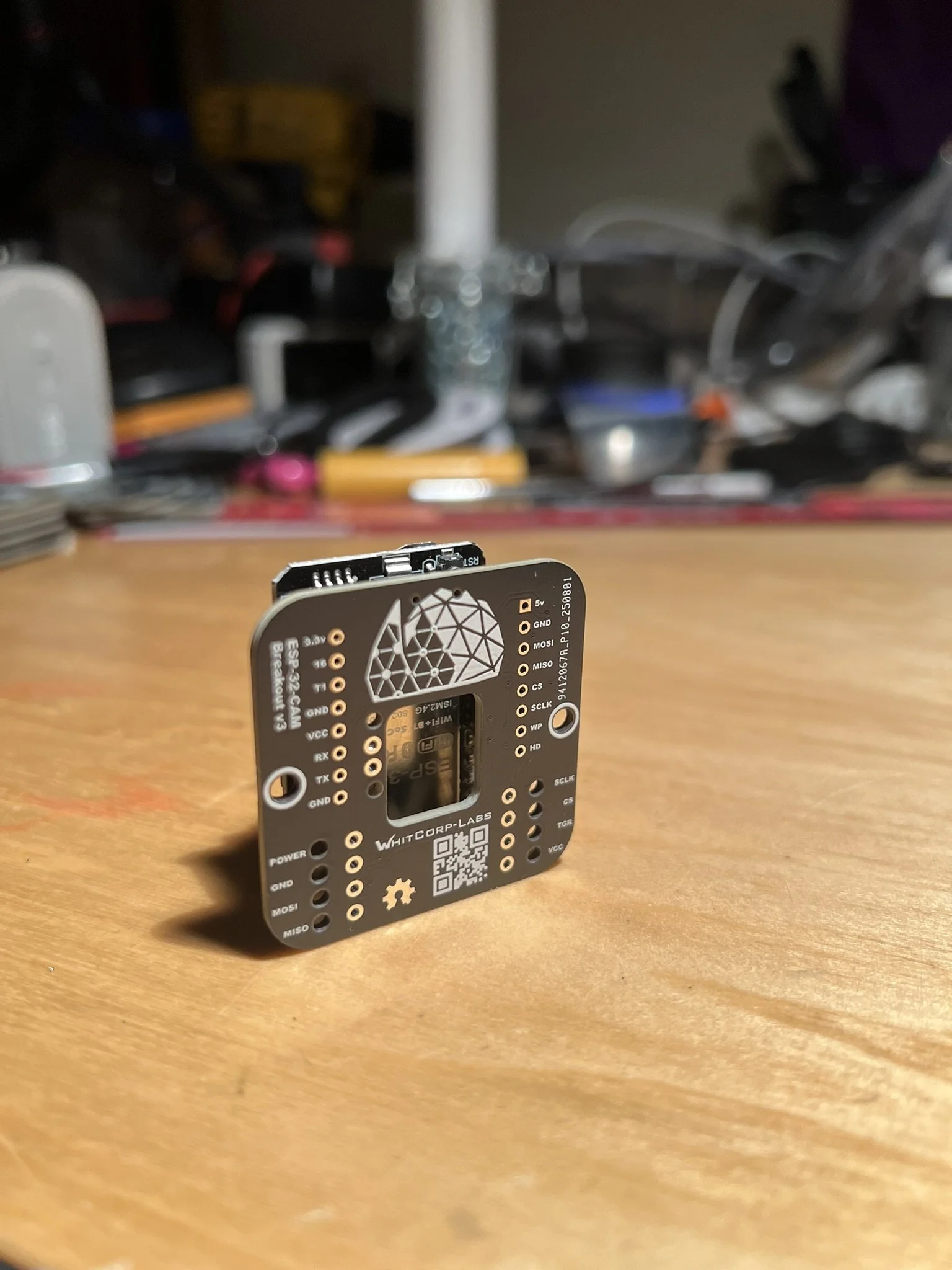

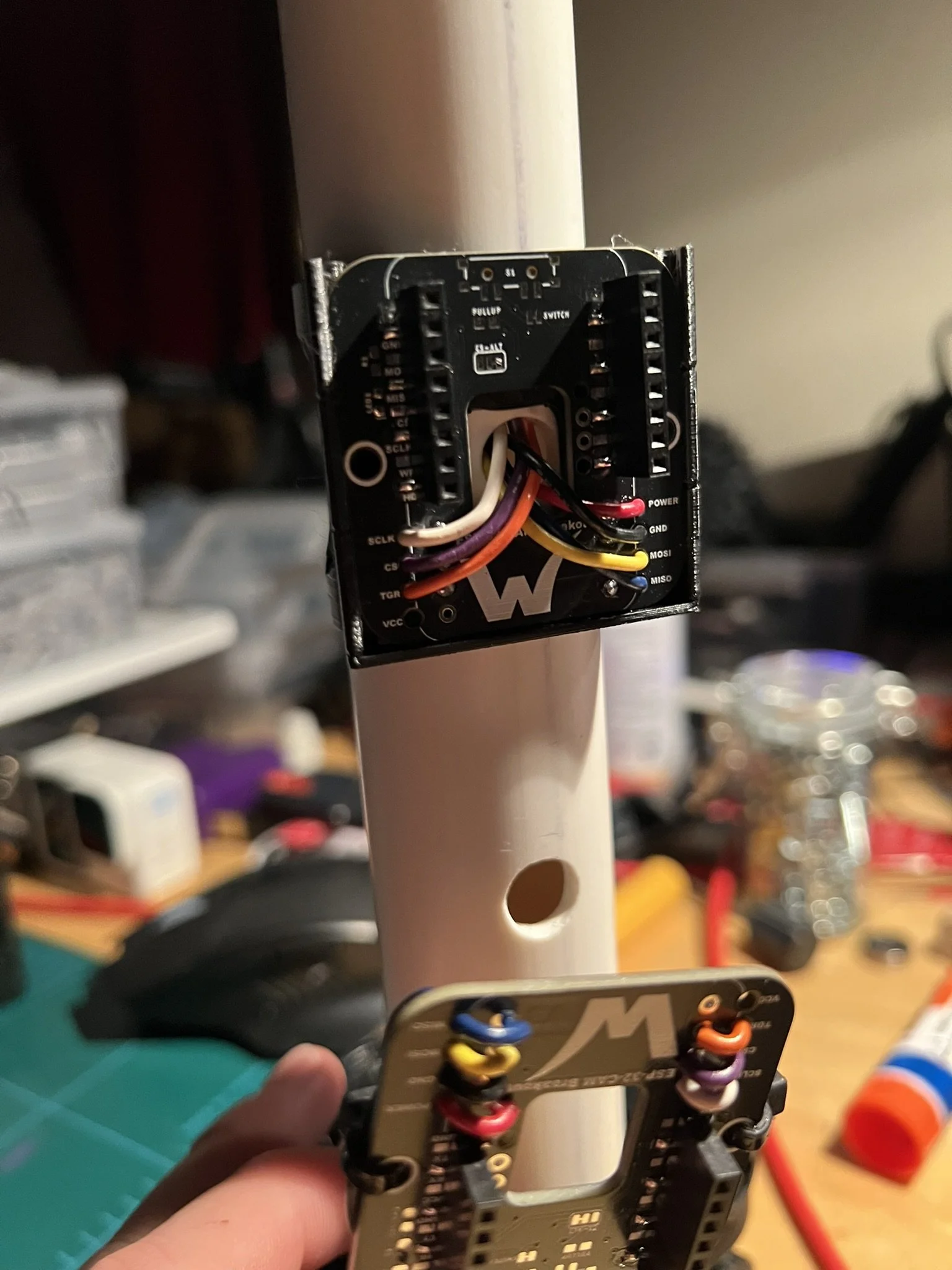

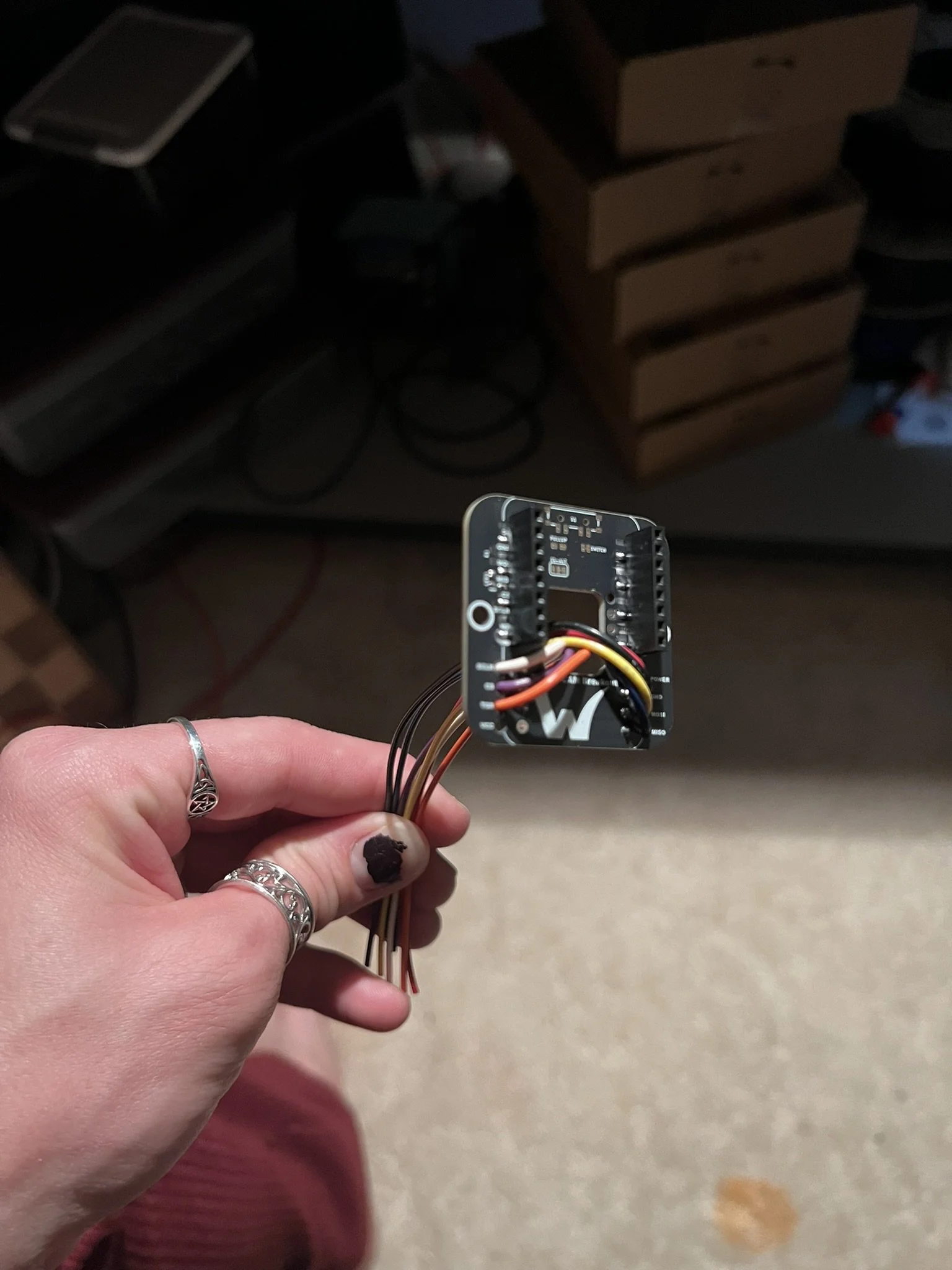

After finding the camera modules I wanted to use, I designed my own breakout PCB’s and controllers for all the electronics involved in the project

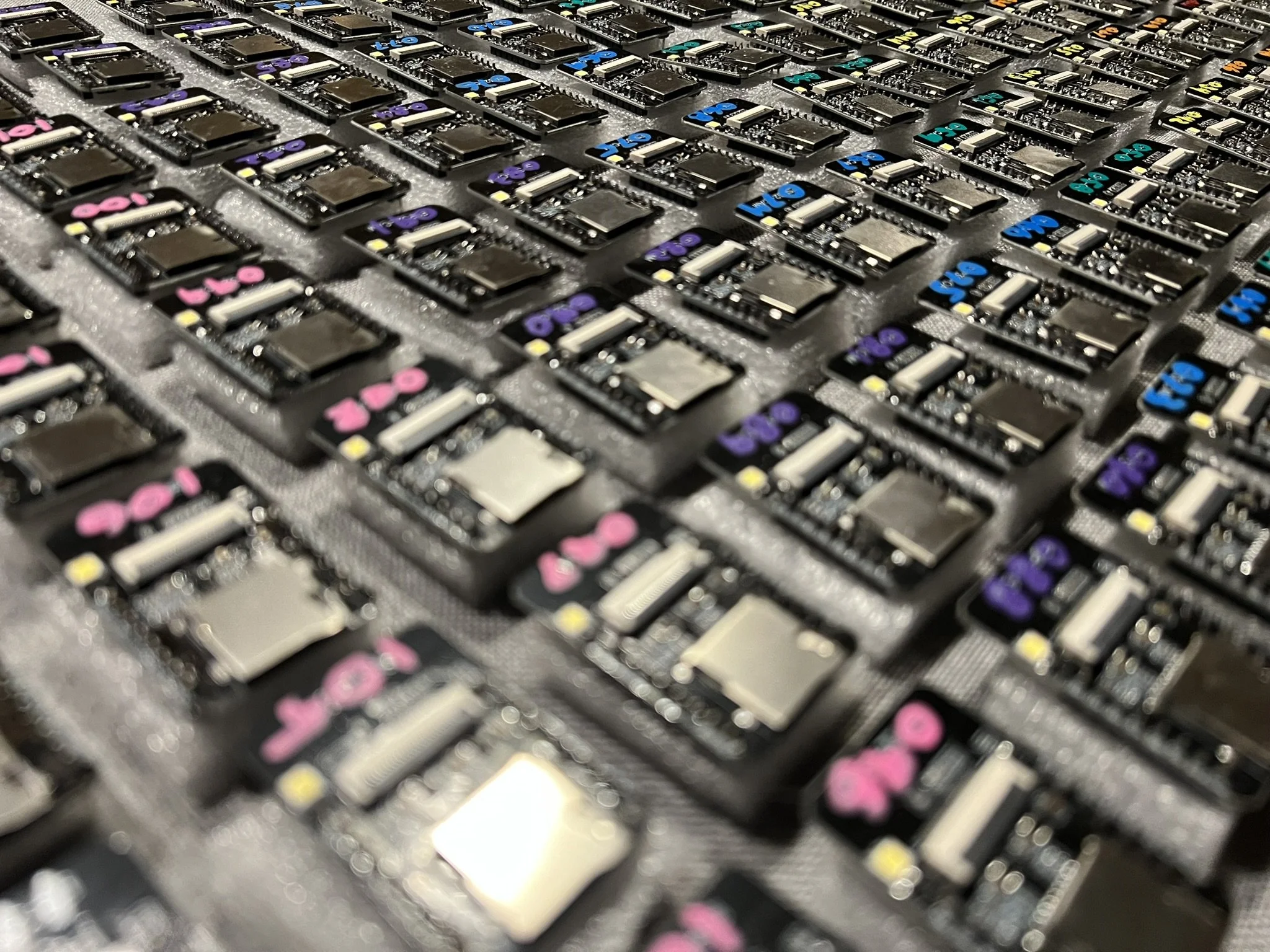

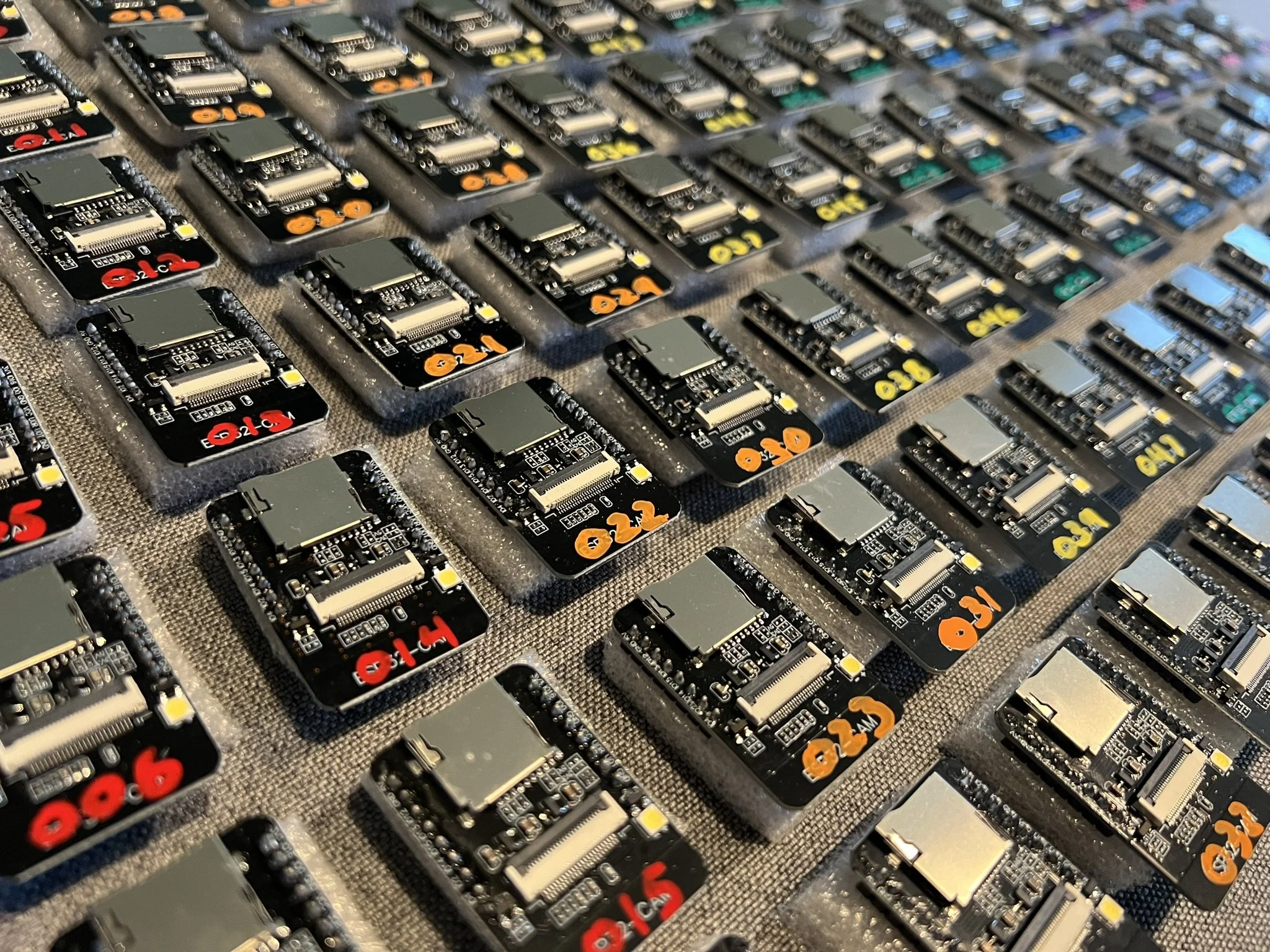

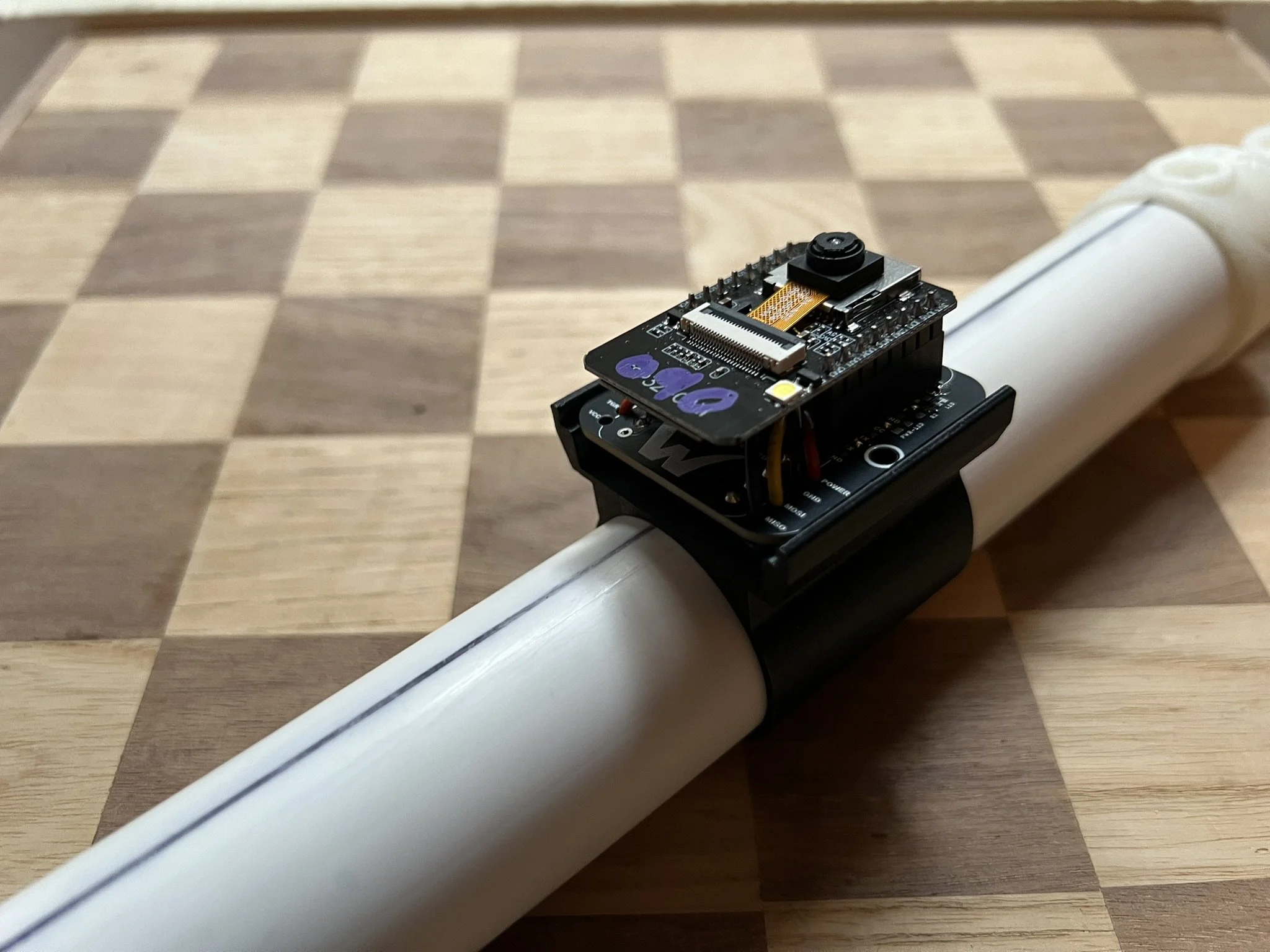

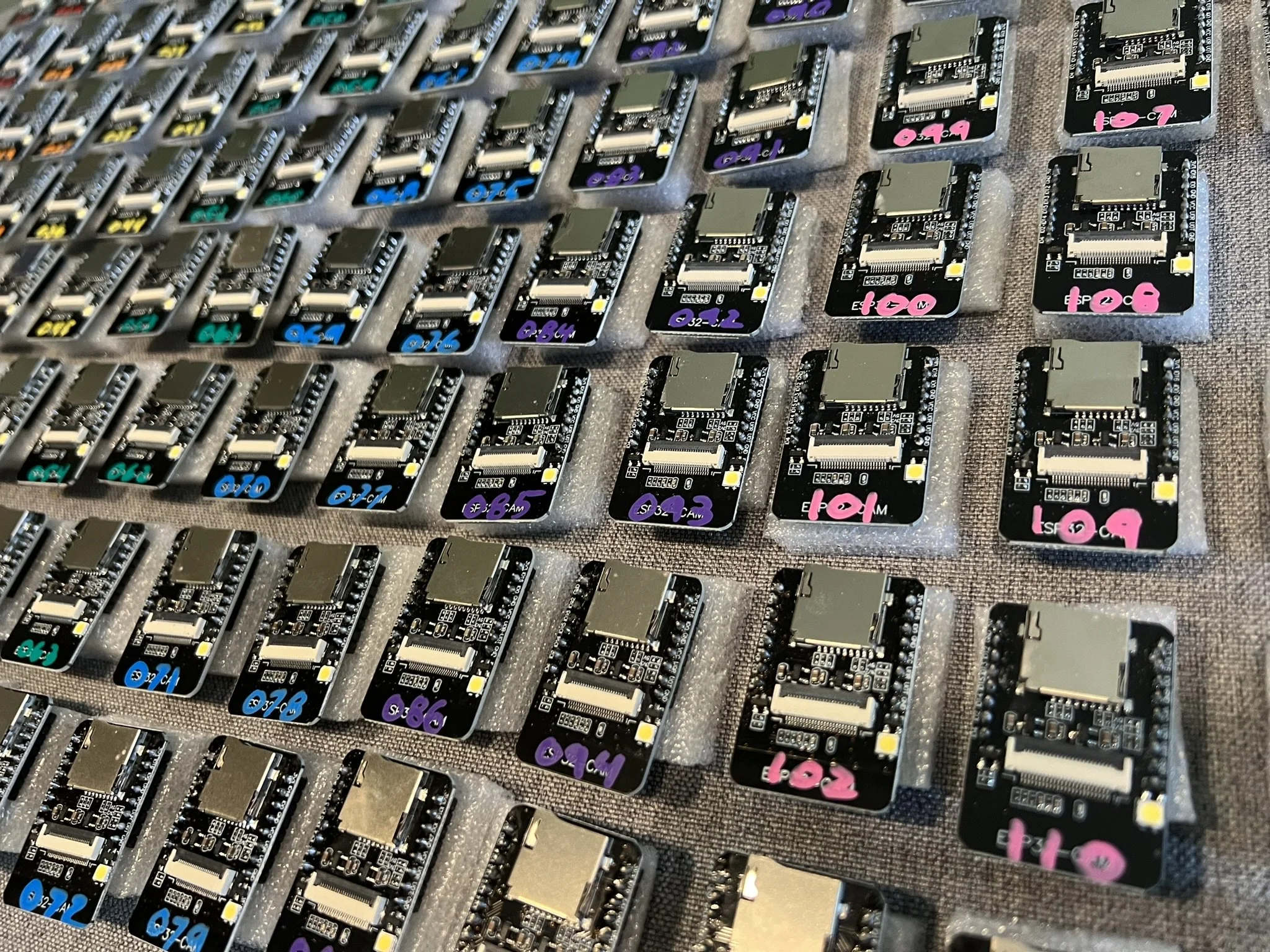

I have done some test photogrammetry scans using the OV5640 Cameras on the 4mb ESP 32 Cam that I am using to try and get the best image quality. The scans turned out great and now I am getting the full setup working to capture all photos all at once!
