Ico Scanner

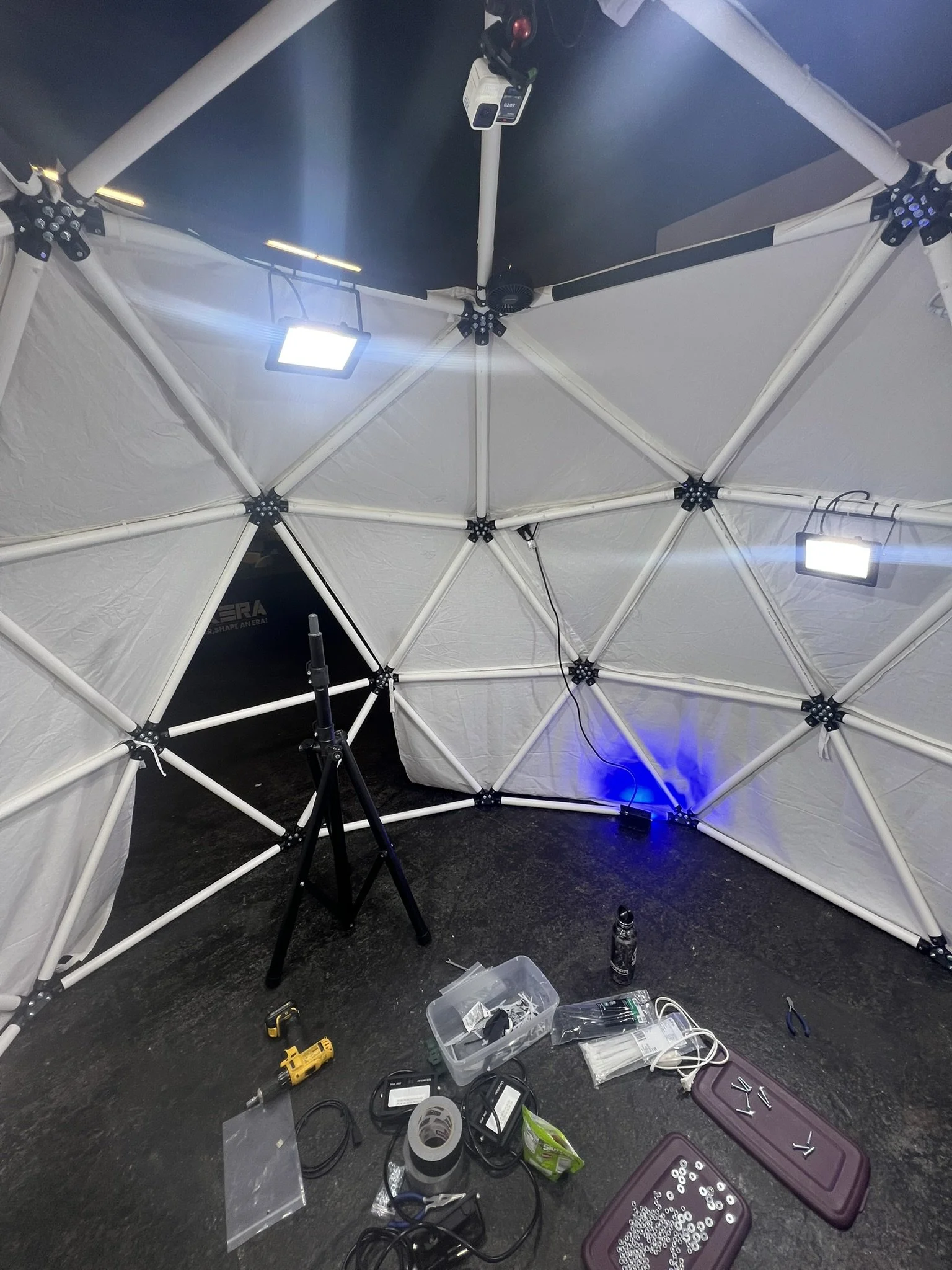

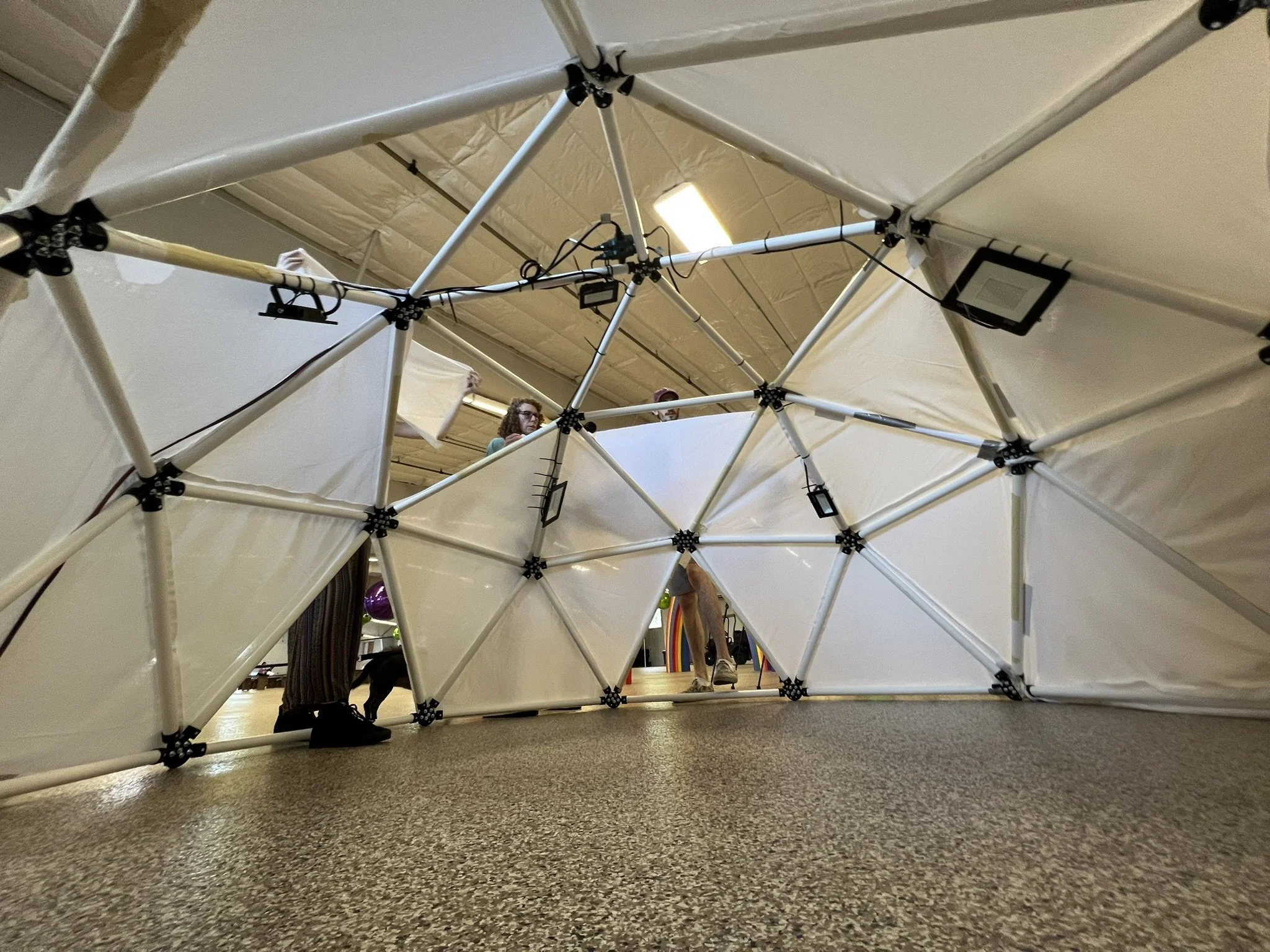

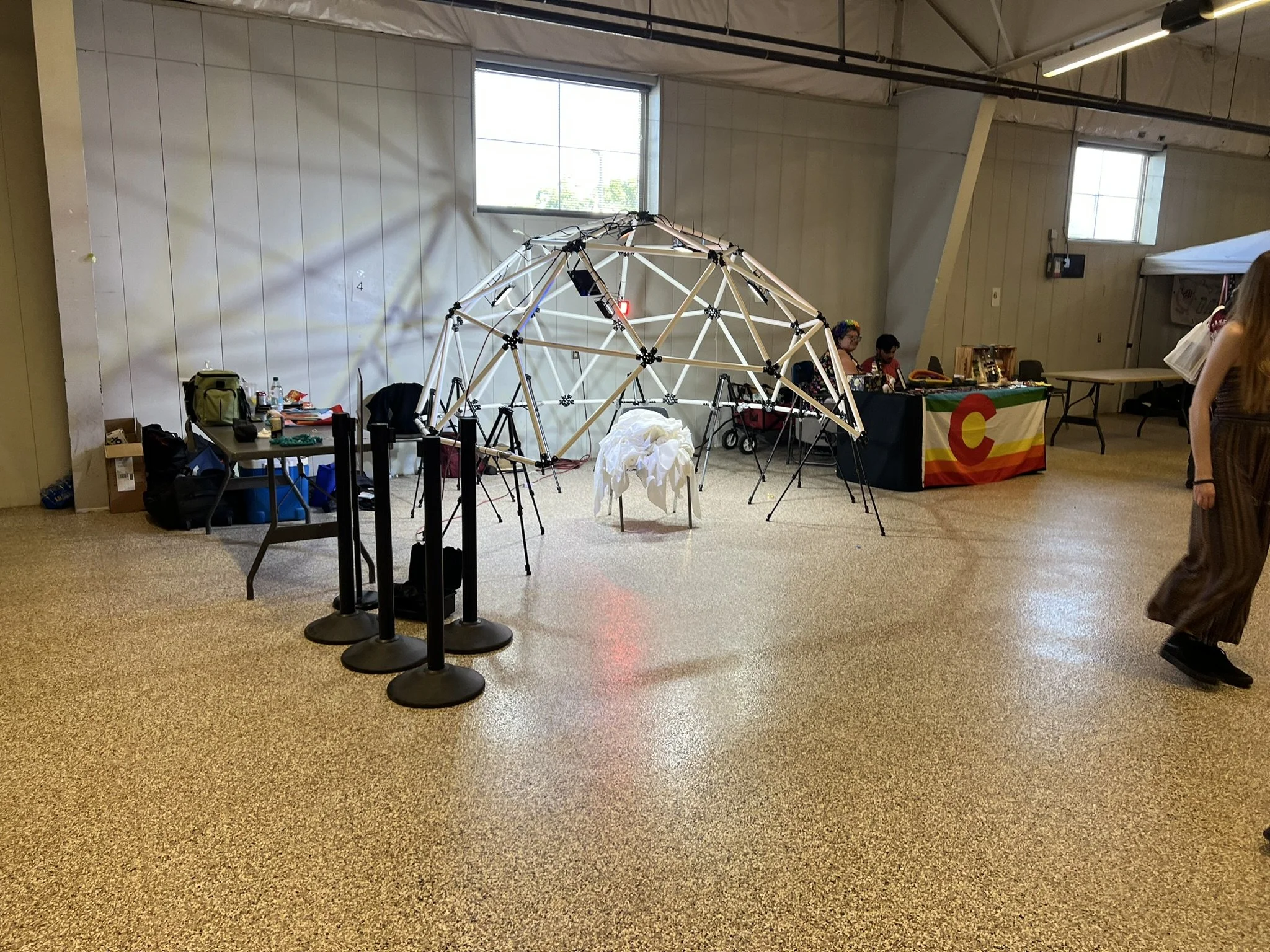

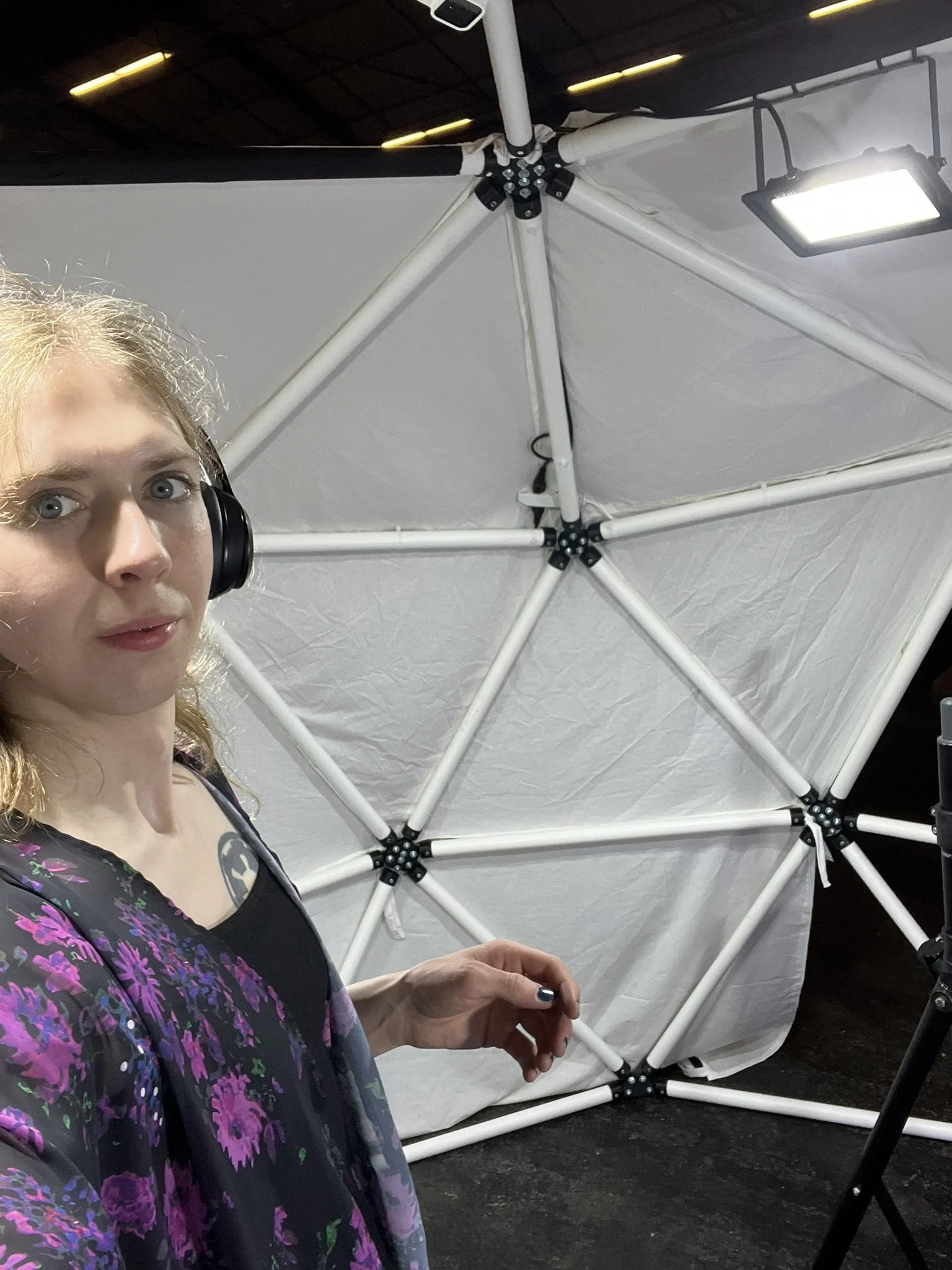

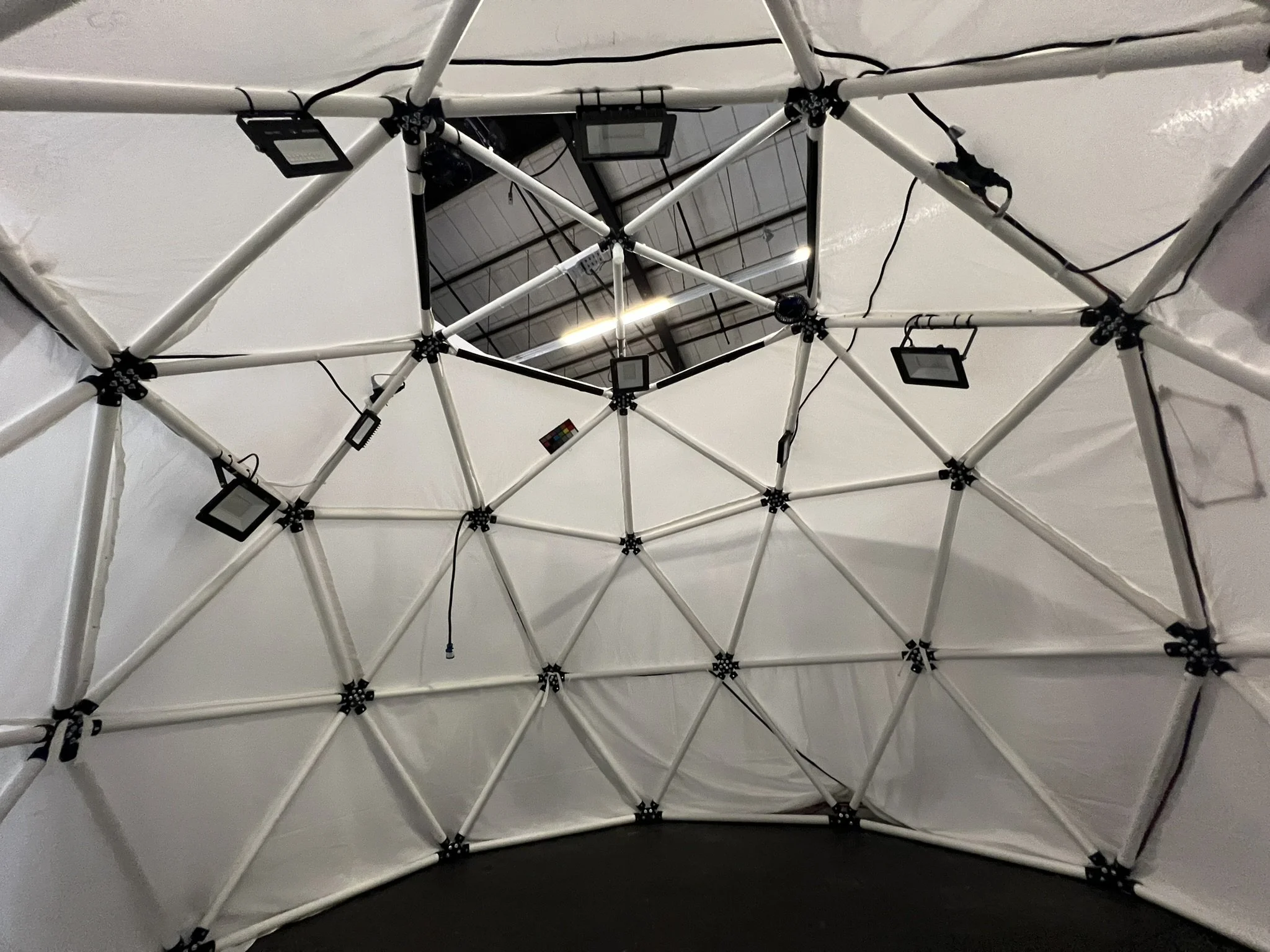

Full size frame v3.2! I am now working on changing the design to incorporate some wire management inside the PVC, more to come!!

Update! 7.22.2025

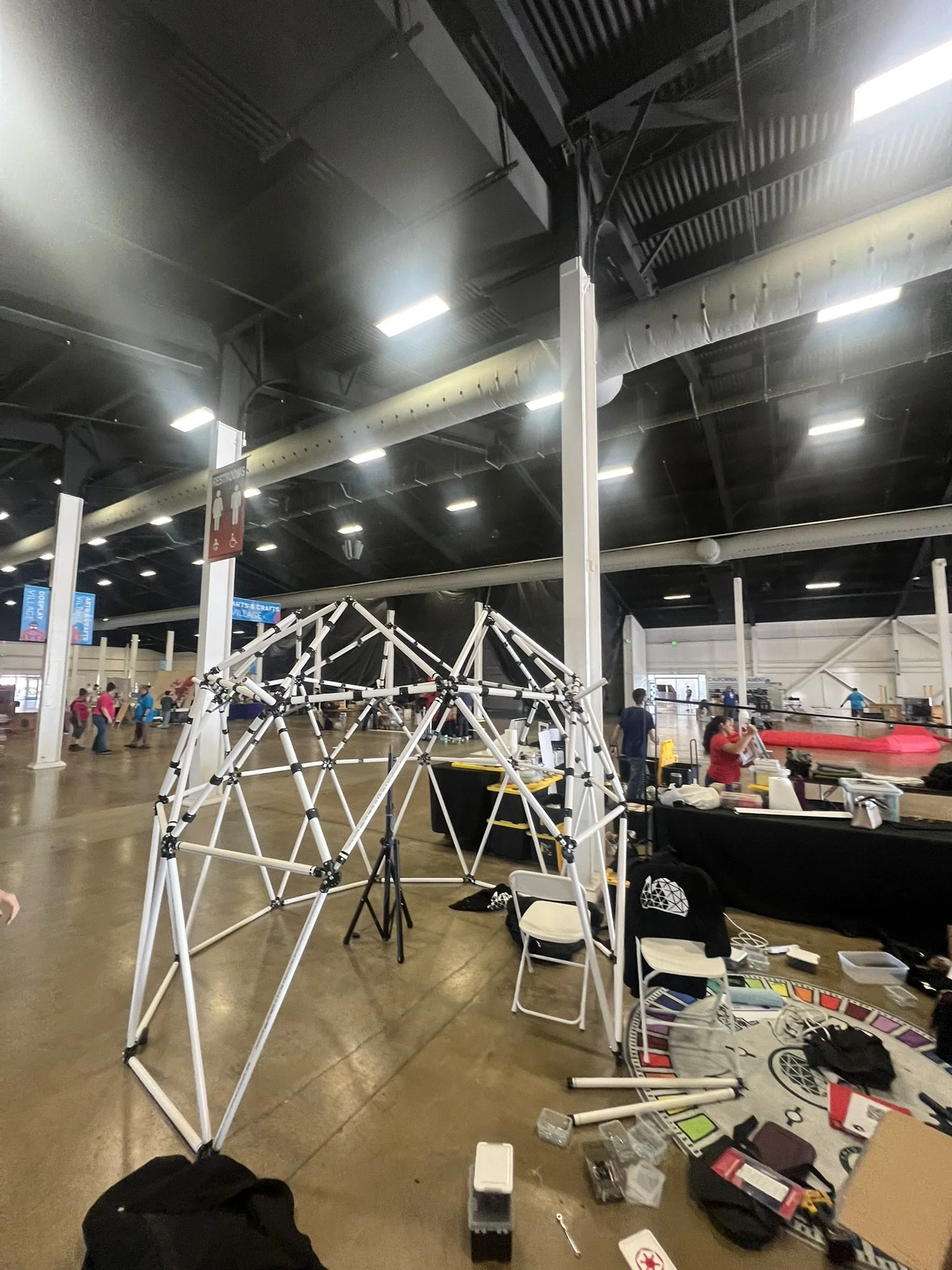

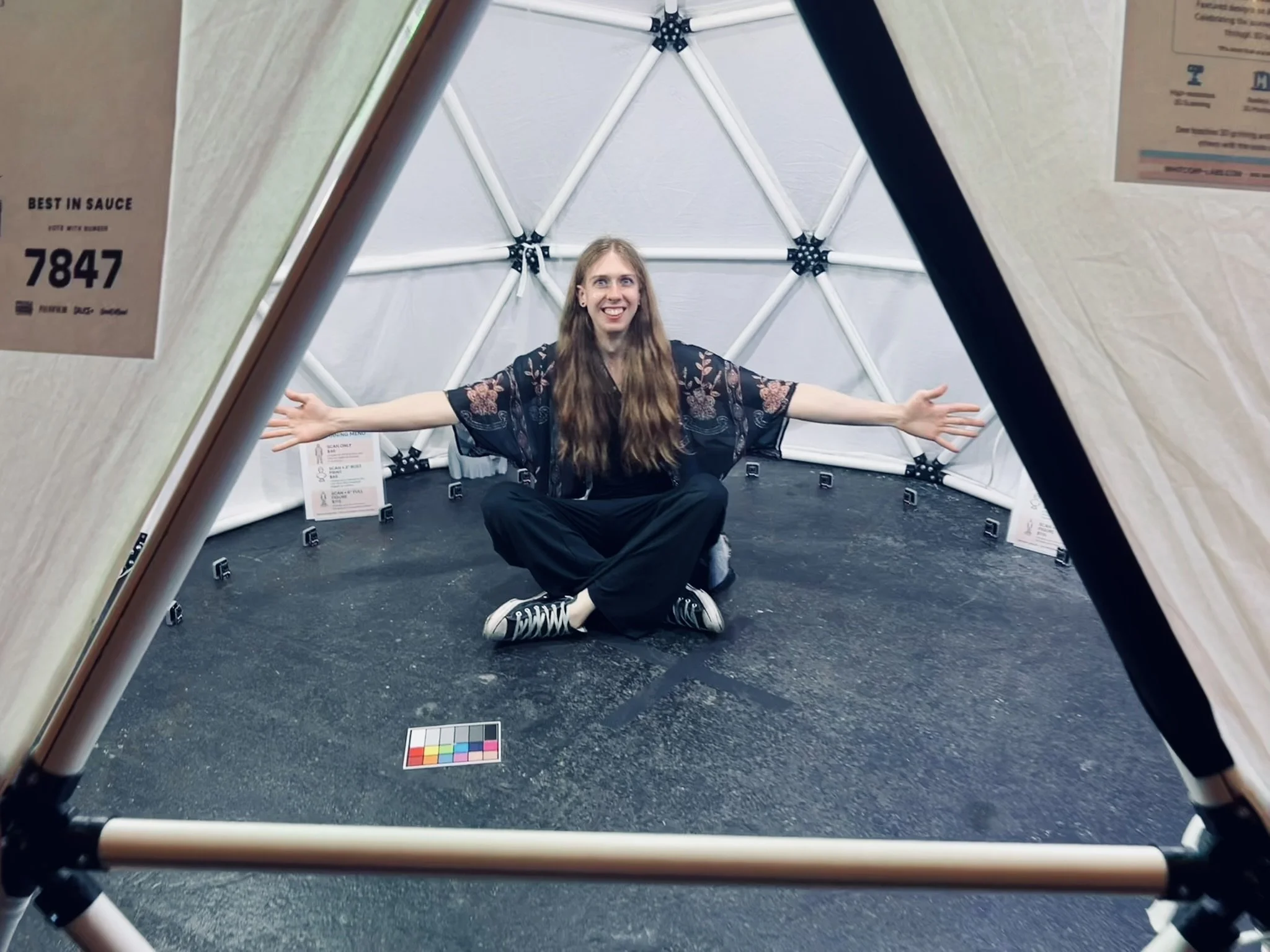

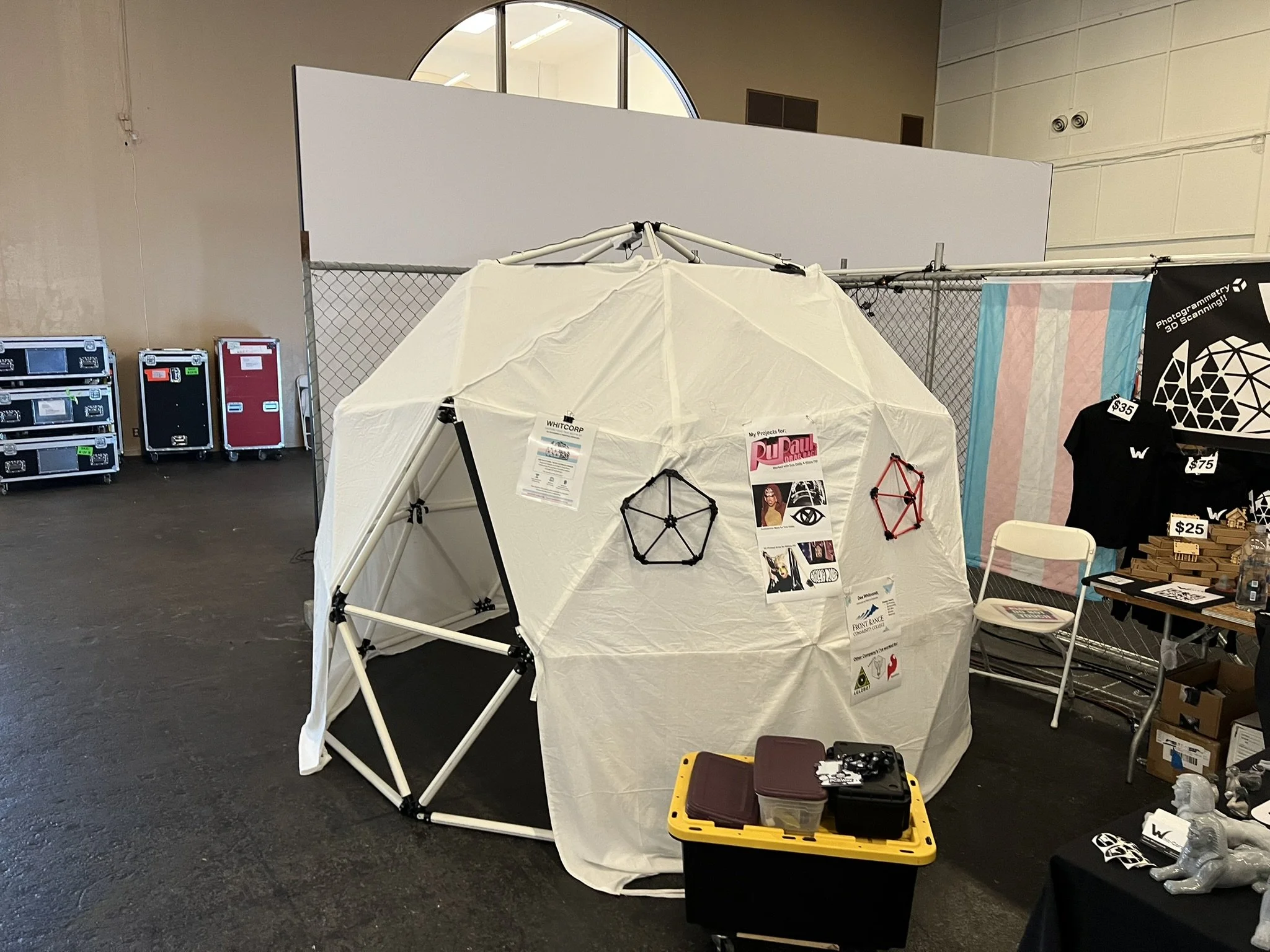

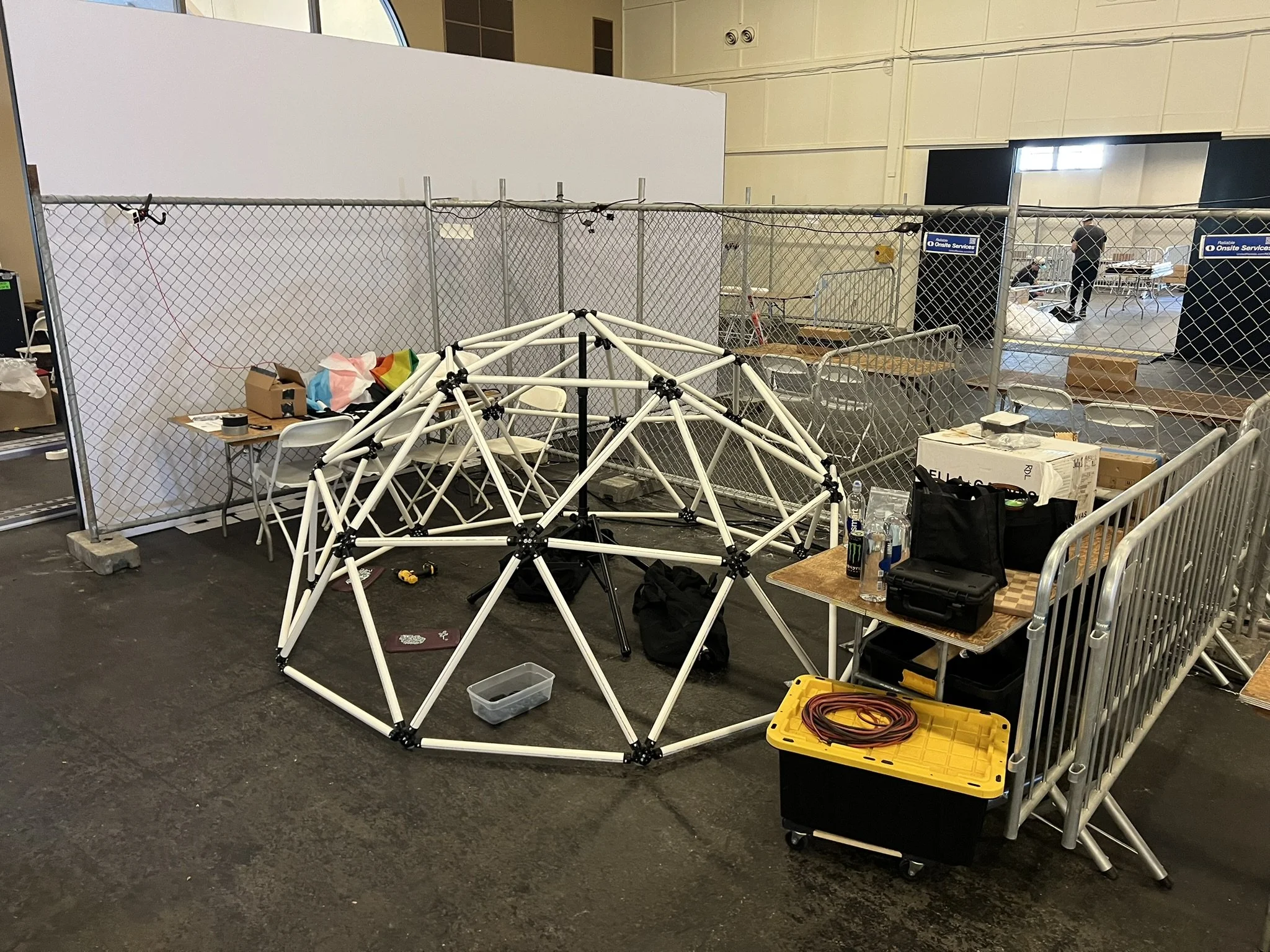

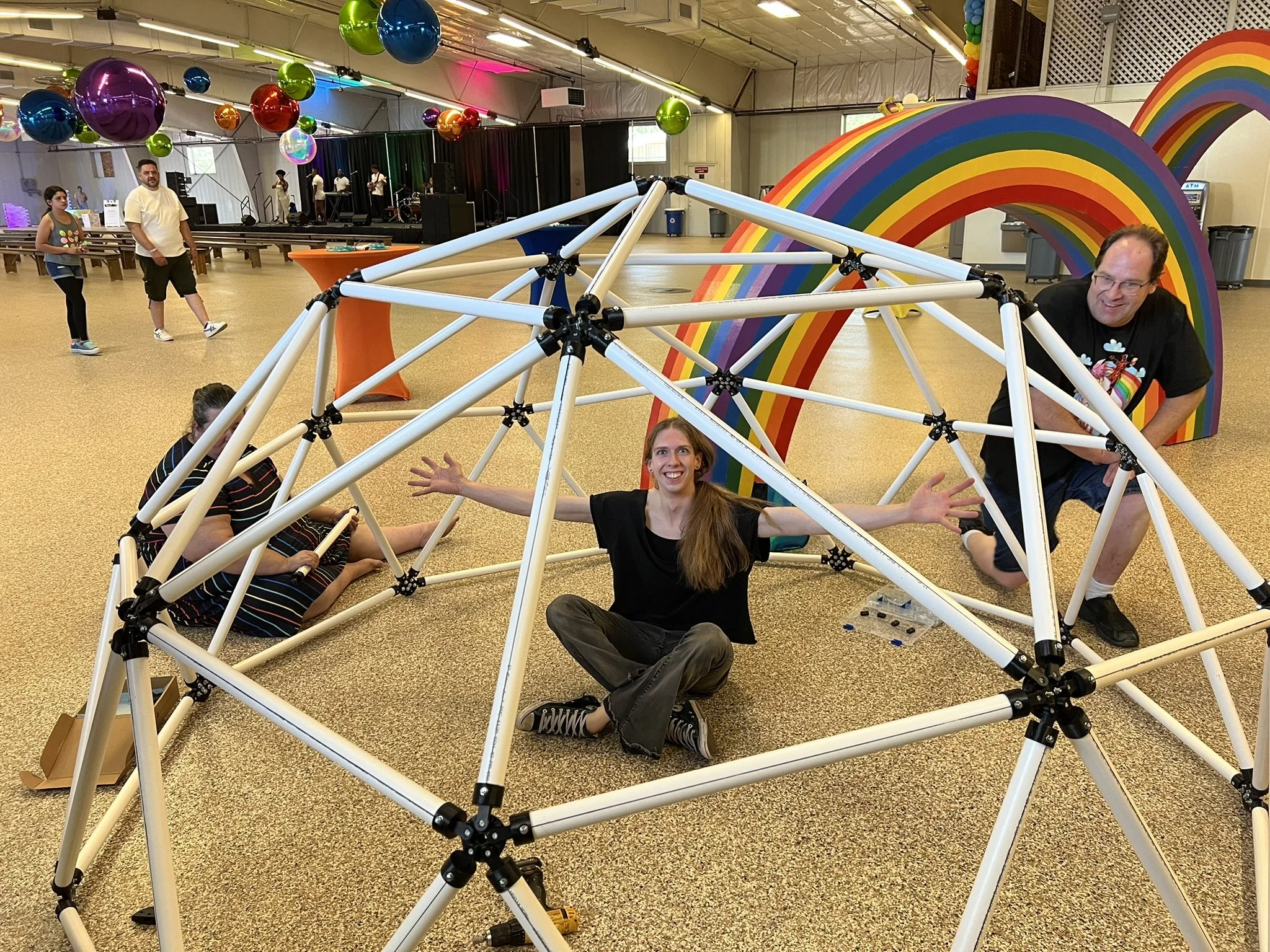

Just got back from Open Sauce putting together v3.4! Mostly adding the base layer using some of the spare shorter length’s. After this event, I have a lot to incorporate, I may have to reprint all the endcaps to help with cabal management inside the pies so I might need to design a full new assembly but keeping the PVC that I have already.

2nd Update! 9.20.2025

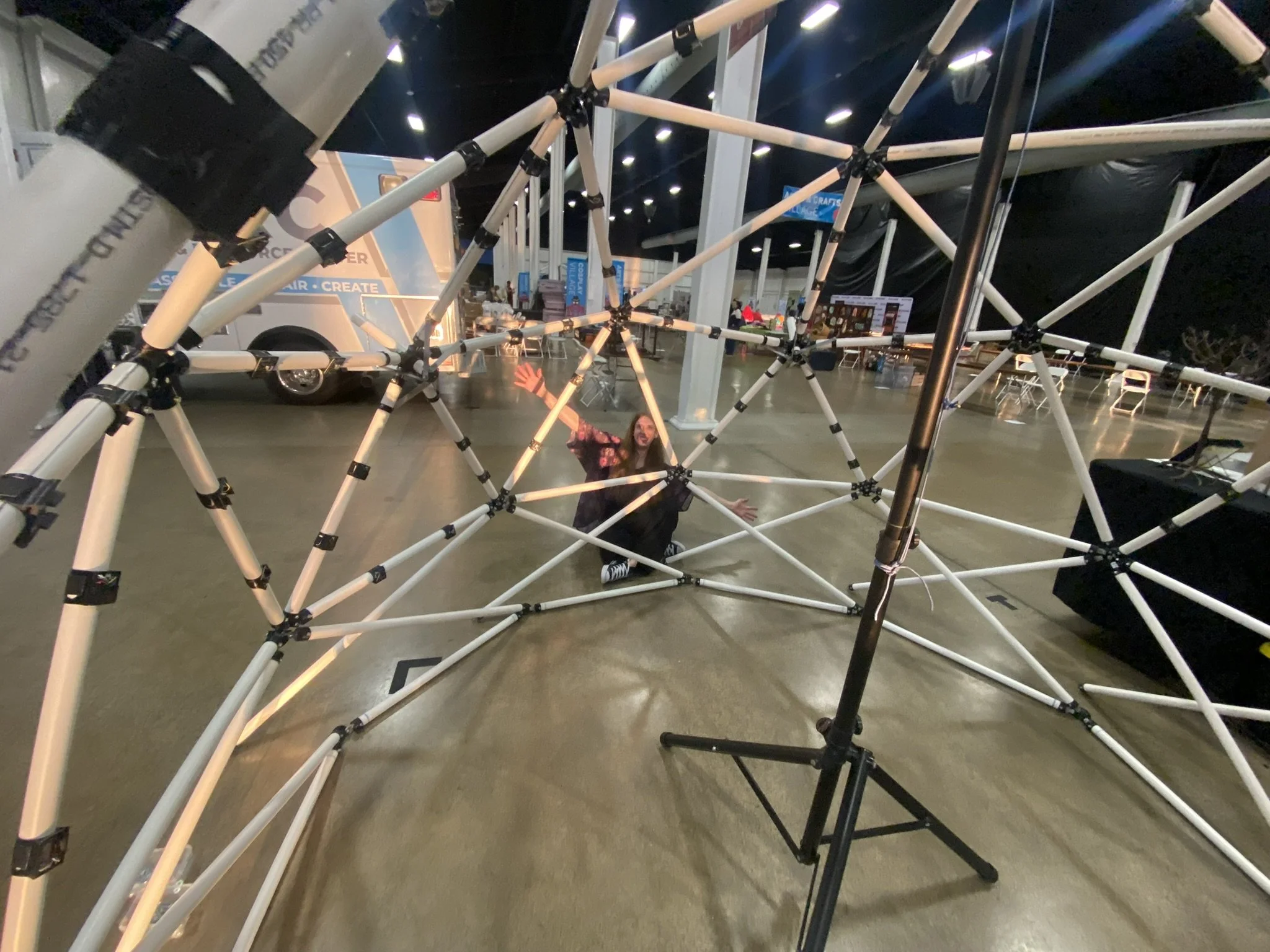

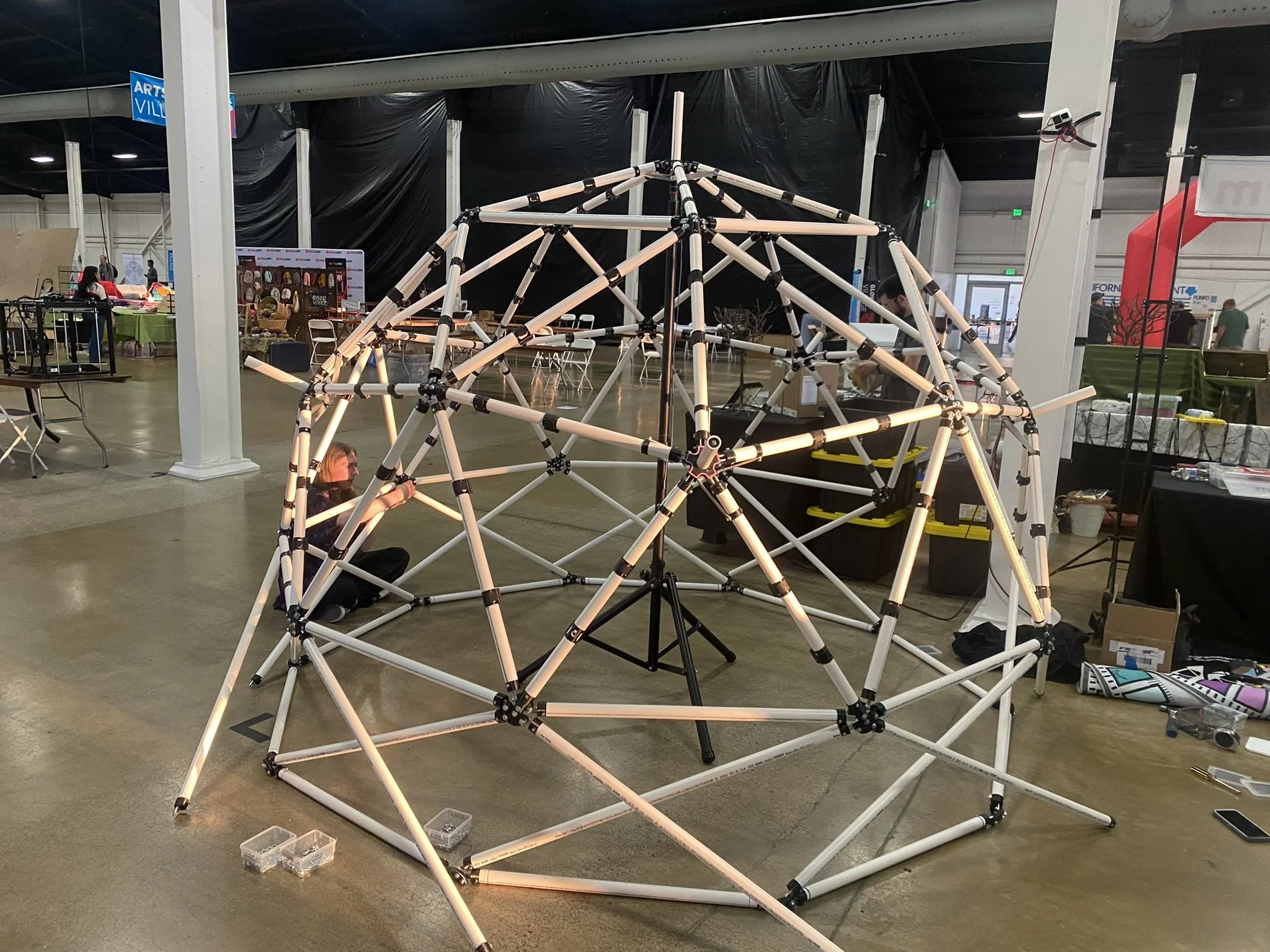

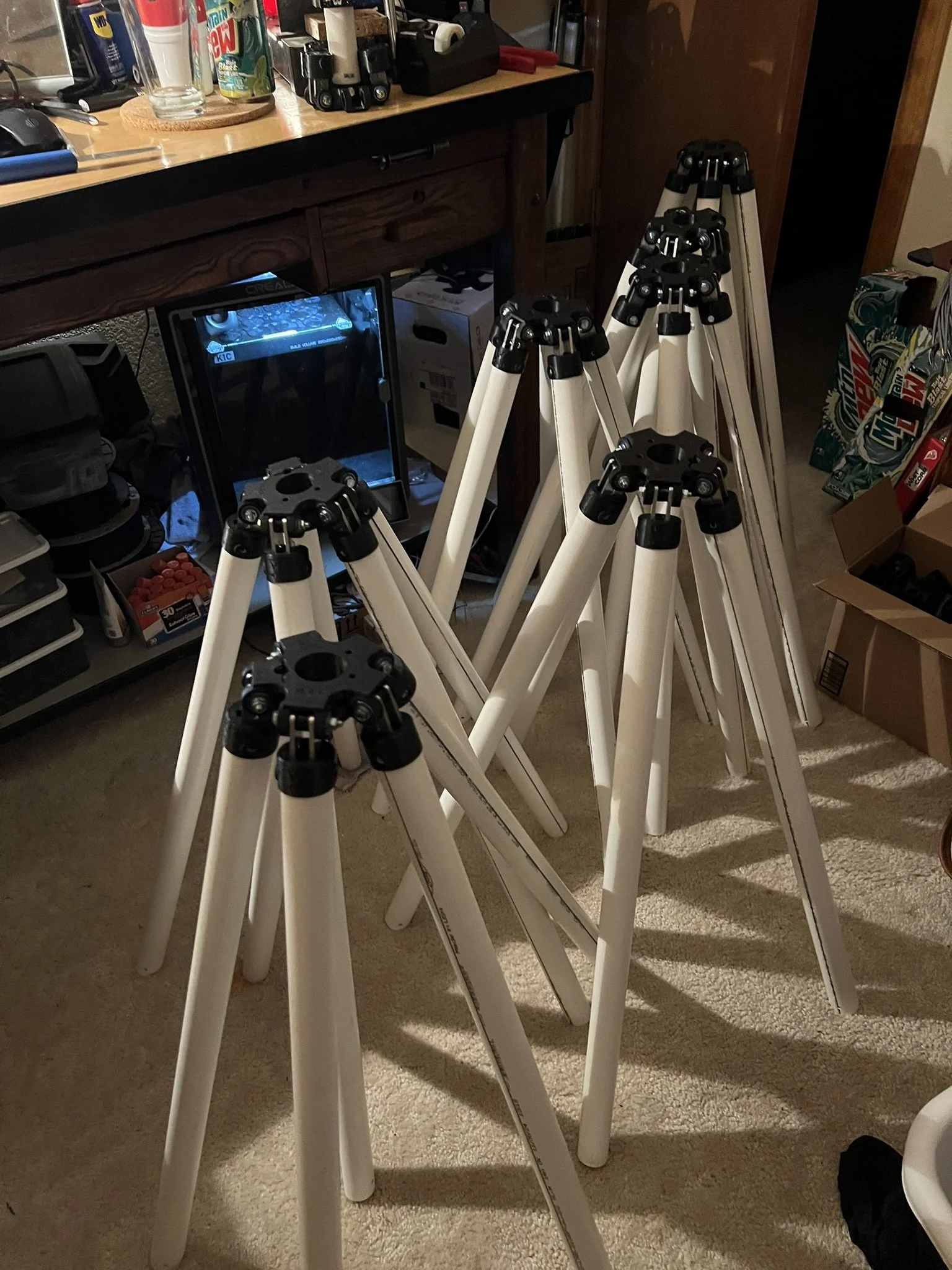

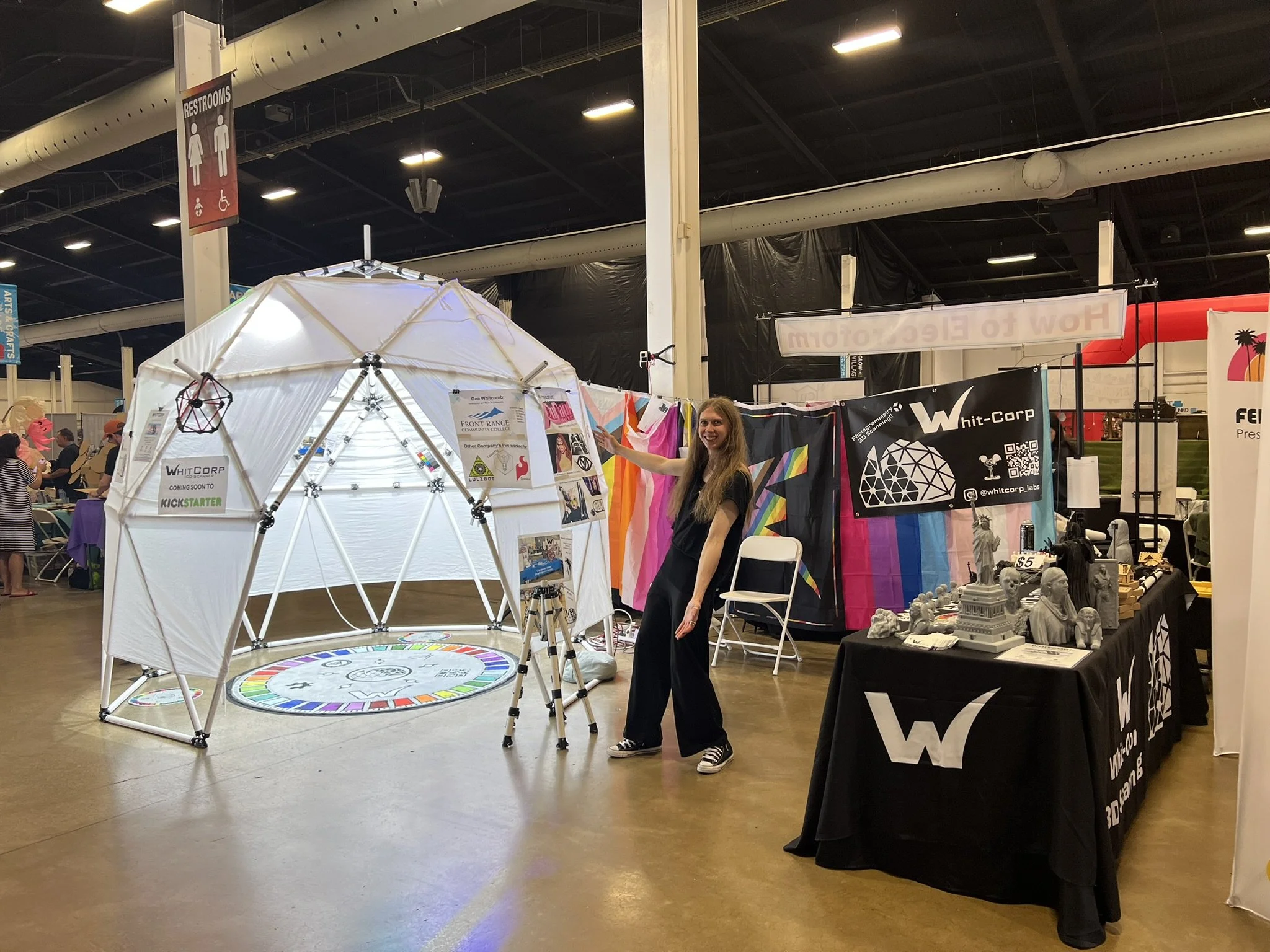

Traveled out to California again for Orange County Maker Fair ware I got to show off Frame v4.2!! This new frame is a semi collapsible design test that cut setup time in half and is much stronger! the only thing that is the same from the last scanner is only the PVC pipe lengths, everything else I redesigned and re printed using about 8kg of filament!! I had wireing started running inside the PVC pipe with new PCB breakout boards for all the cameras and connection points!!
